Attributes
| Part Number | D2404-L42-24-SS |
|---|---|
| Is Series Page | 0 |
Description

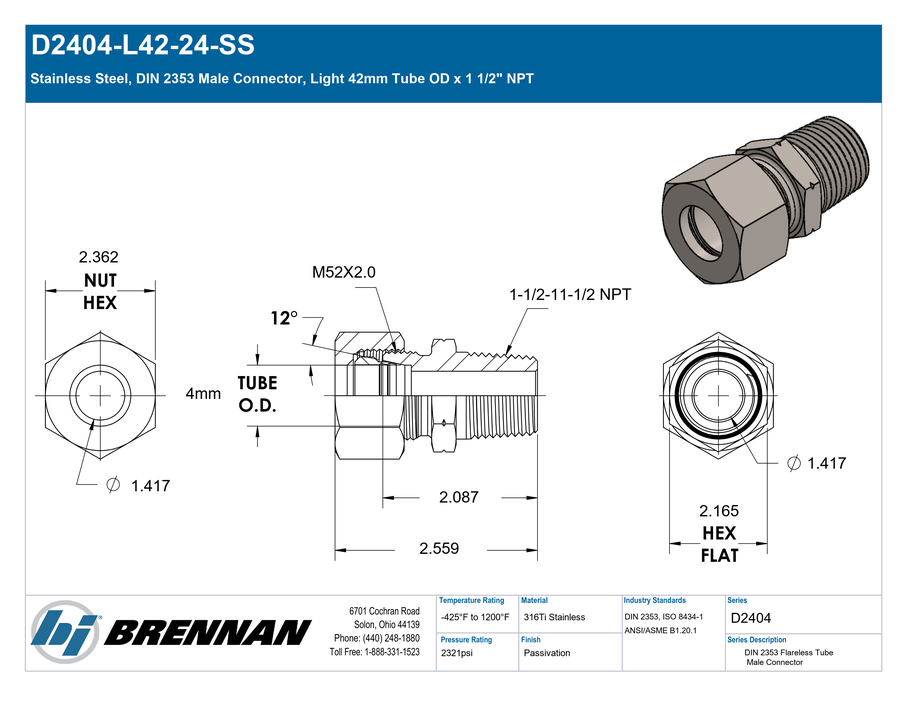

Stainless Steel, DIN 2353 Male Connector, Light 42mm Tube OD x 1 1/2" NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"4mm","Side 1 Thread Type":"M52X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"1-1/2-11-1/2 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"55mm","Weight":"1.40 lb"} |
| Performance Specifications | {"Working Pressure":"2321 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"9284 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE42L11/2NPT71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Male Pipe |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Straight |
| Product Type | Fittings |
