Attributes
| Part Number | 5406-SHP-32-SS |
|---|---|
| Is Series Page | 0 |
Description

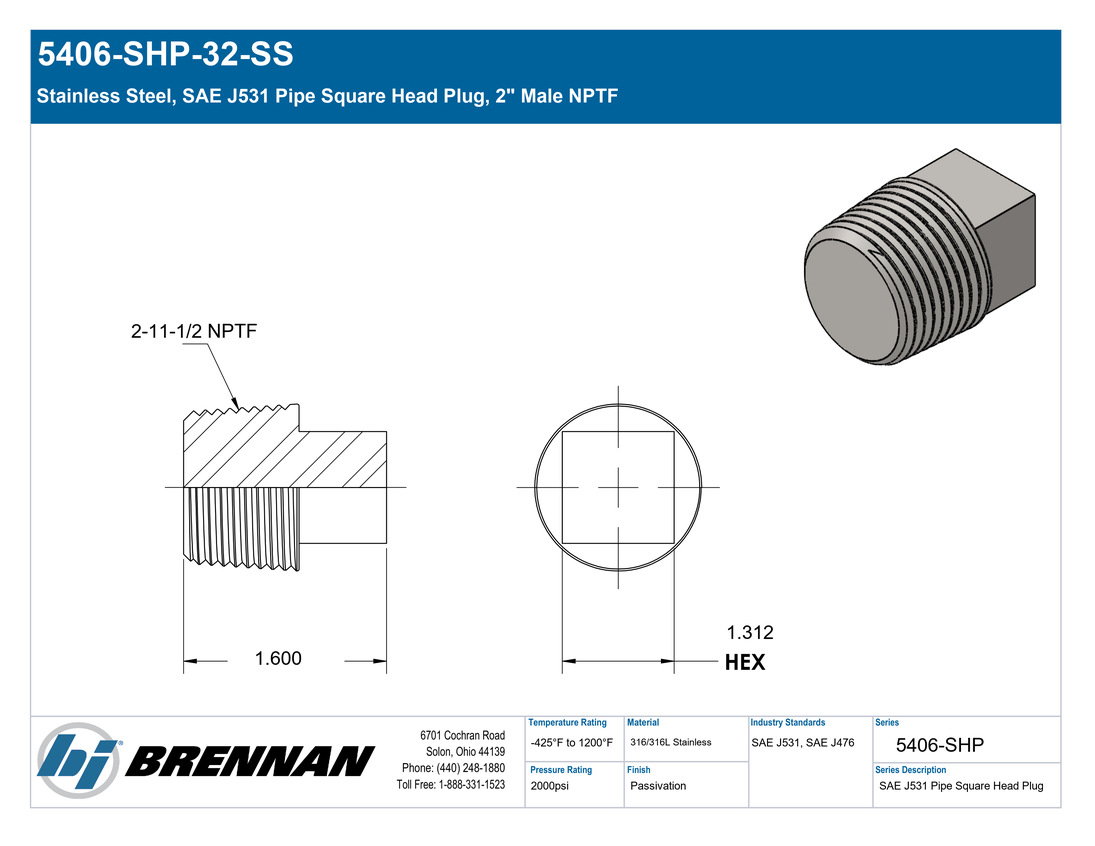

Stainless Steel, SAE J531 Pipe Square Head Plug, 2" Male NPTF
Specifications
| Connection Details | {"Connection Type":"Male NPTF","Pipe Size":"2\"","Thread Type":"2-11-1/2 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"1.40 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"2 SHP-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Square Head Pipe Plug |
| Technical Series Configuration | SAE J531 Square Inside Head Pipe Plug |
| Side 1 Connection Type | Male NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
