Attributes
| Part Number | 2501-40-40-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare 90° Male Elbow, 2-1/2" Male JIC x 2-1/2" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"2-1/2\"","Side 1 Thread Type":"3-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"2-1/2\"","Side 2 Thread Type":"2-1/2-8 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"3.234","Weight":"5.00 lb"} |
| Performance Specifications | {"Working Pressure":"1000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"4000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2024-40-40","Parker TFD Part Number":"40 CTX-SS","SAE J514 Part Number":"SAE J514 40-40 070202S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

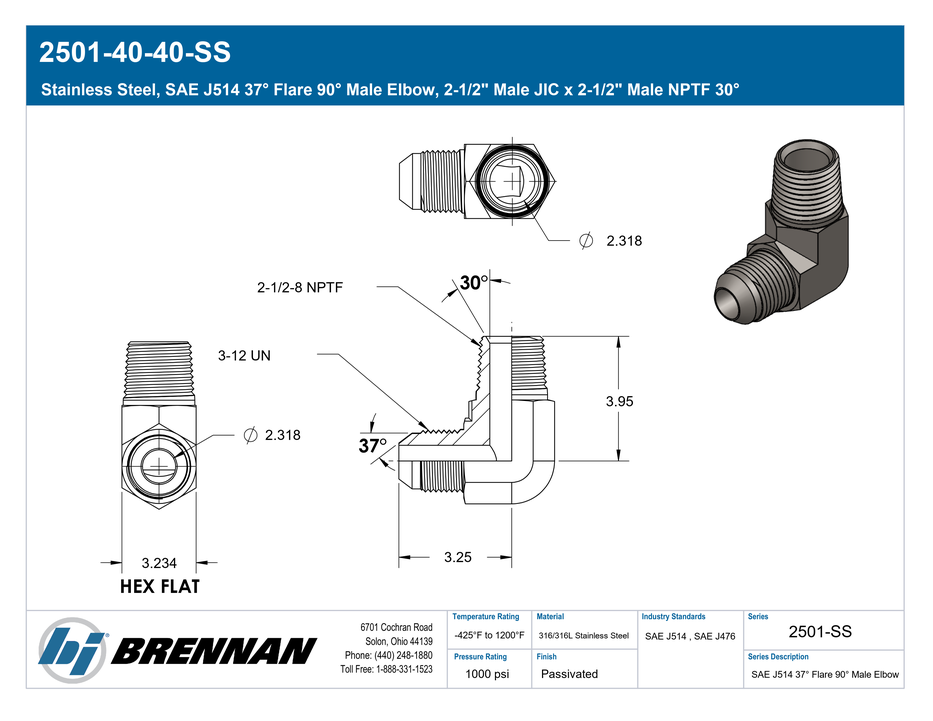

Specification Sheet
Open PDF
