Attributes
| Part Number | 5406-C-04-B |
|---|---|
| Is Series Page | 0 |
Description
Brass, SAE J514 Pipe Cap, 1/4" Female NPTF
Specifications
| Connection Details | {"Connection Type":"Female NPTF","Pipe Size":"1/4\"","Thread Type":"1/4-18 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4 HPC-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Pipe Cap |
| Technical Series Configuration | SAE J476 Female NPTF Pipe Cap |
| Side 1 Connection Type | Female NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

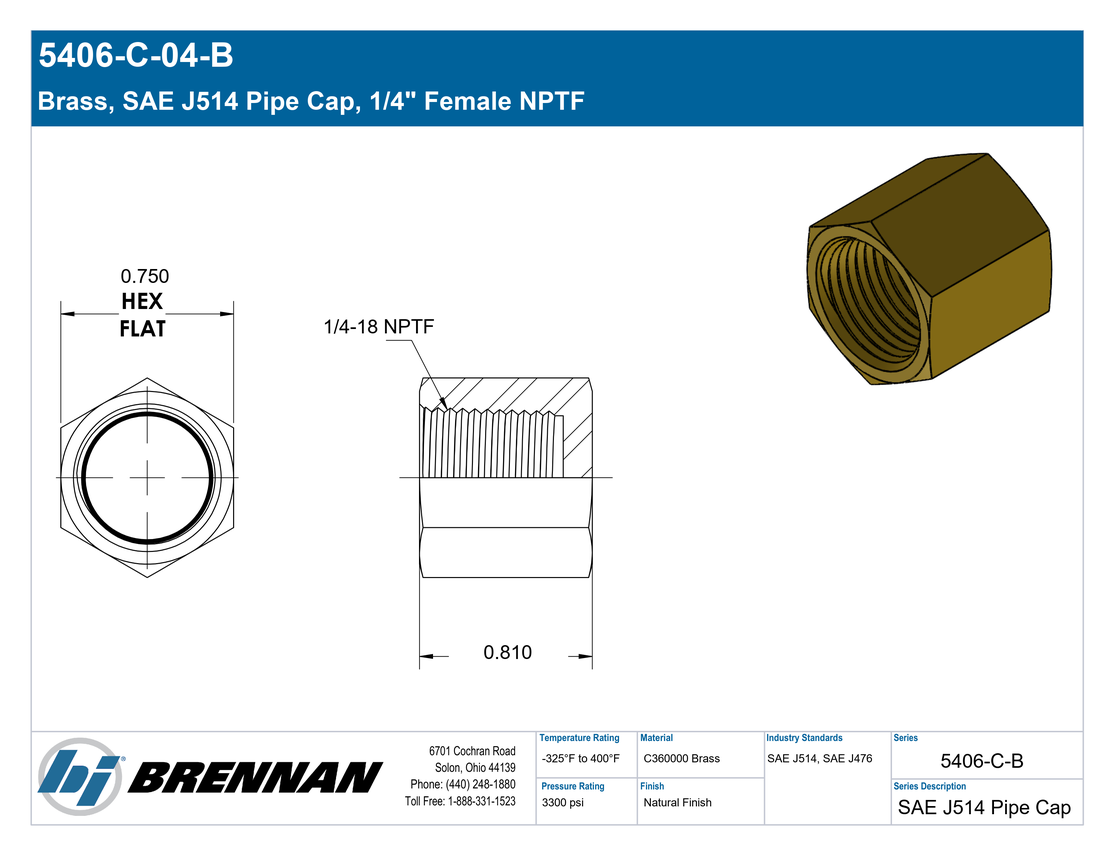

Specification Sheet
