Attributes
| Part Number | 7030-04-06-SS |
|---|---|
| Is Series Page | 0 |
Description

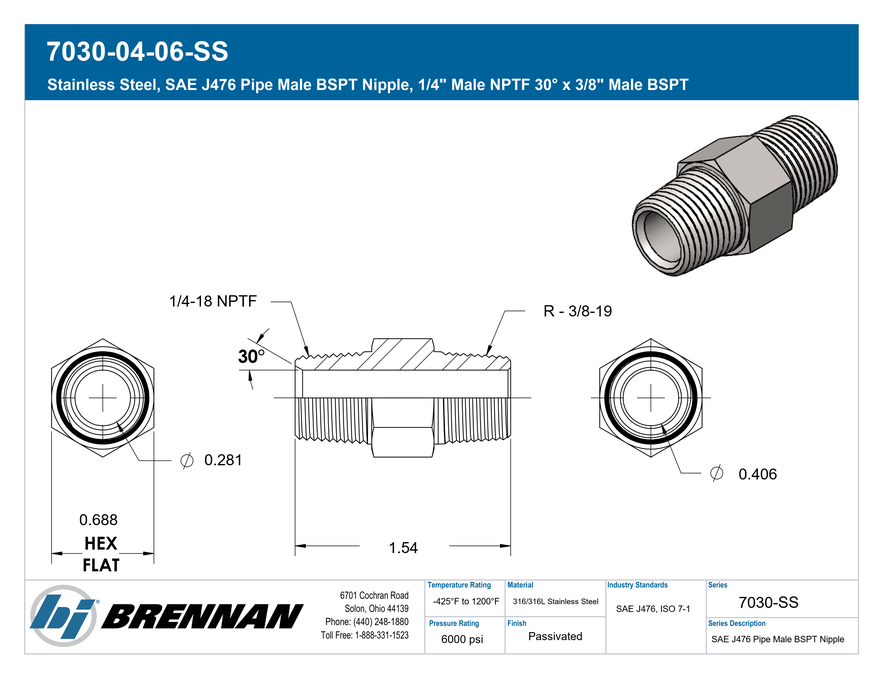

Stainless Steel, SAE J476 Pipe Male BSPT Nipple, 1/4" Male NPTF 30° x 3/8" Male BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"R - 3/8-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"0.688","Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4 X 3/8 FHF3SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Male BSPT |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 7-1 Male BSPT Pipe Nipple |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPT |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
