Attributes
| Part Number | 5406-P-32 |
|---|---|
| Is Series Page | 0 |
Description

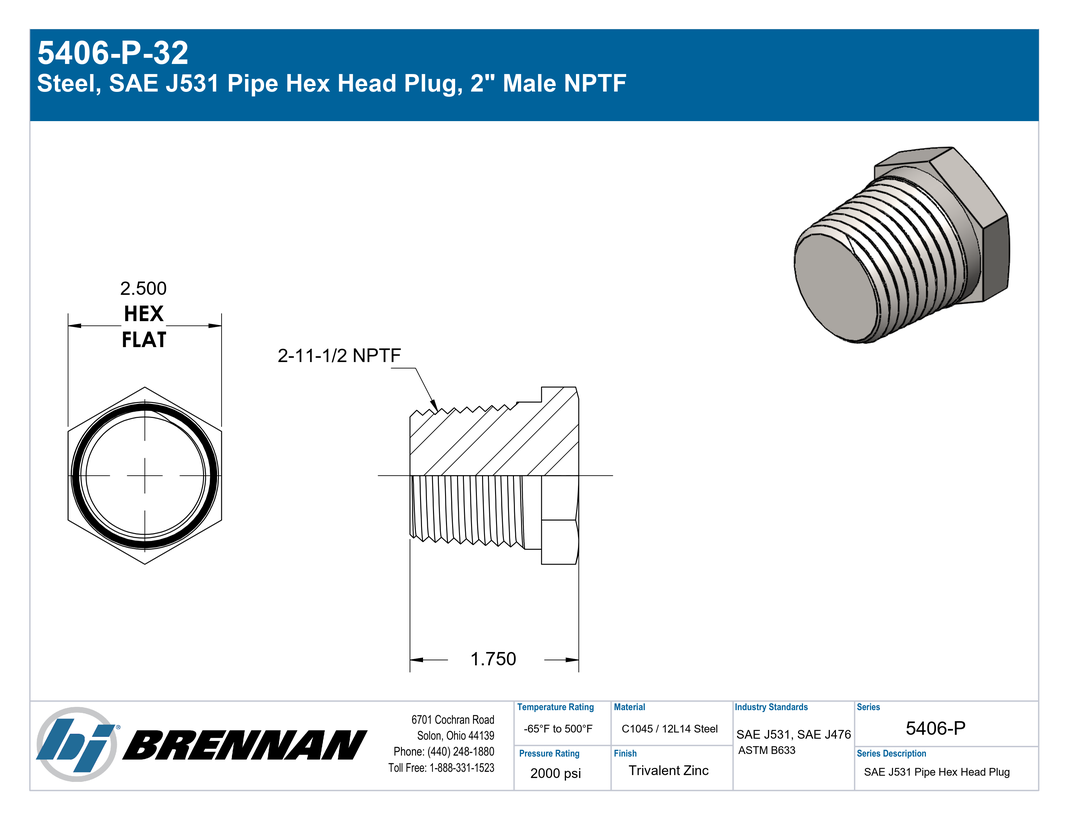

Steel, SAE J531 Pipe Hex Head Plug, 2" Male NPTF
Specifications
| Connection Details | {"Connection Type":"Male NPTF","Pipe Size":"2\"","Thread Type":"2-11-1/2 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"2.31 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2082-32S","Parker Hose Part Number":"01CP-32","Parker TFD Part Number":"2 HP-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Hex Head Pipe Plug |
| Technical Series Configuration | SAE J531 Hexagon Outside Head Pipe Plug |
| Side 1 Connection Type | Male NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
