Attributes
| Part Number | D2408-S10-SS-X |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, DIN 2353 Plug, Heavy 10mm Tube OD, Body Only
Specifications
| Connection Details | {"Connection Type":"Male DIN","Tube OD":"10mm","DIN Pressure Series":"Heavy","Thread Type":"M18X1.5","Standard":"DIN 2353, ISO 8434-1","Connection Standard":"DIN 2353, ISO 8434-1","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"11603 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"46412 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"ROV10S71X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube Plug, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Plug, Body Only |
| Side 1 Connection Type | Male DIN |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

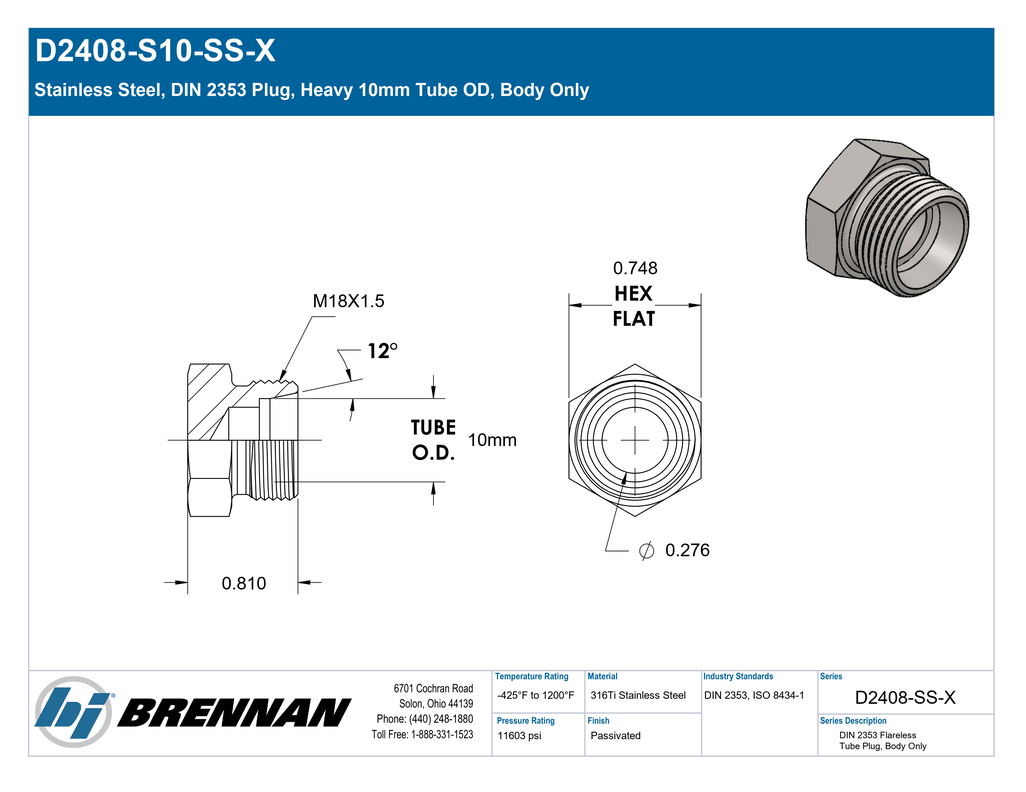

Specification Sheet
