| Part Number | FS6505-04-04 |
|---|---|
| Is Series Page | 0 |
Description

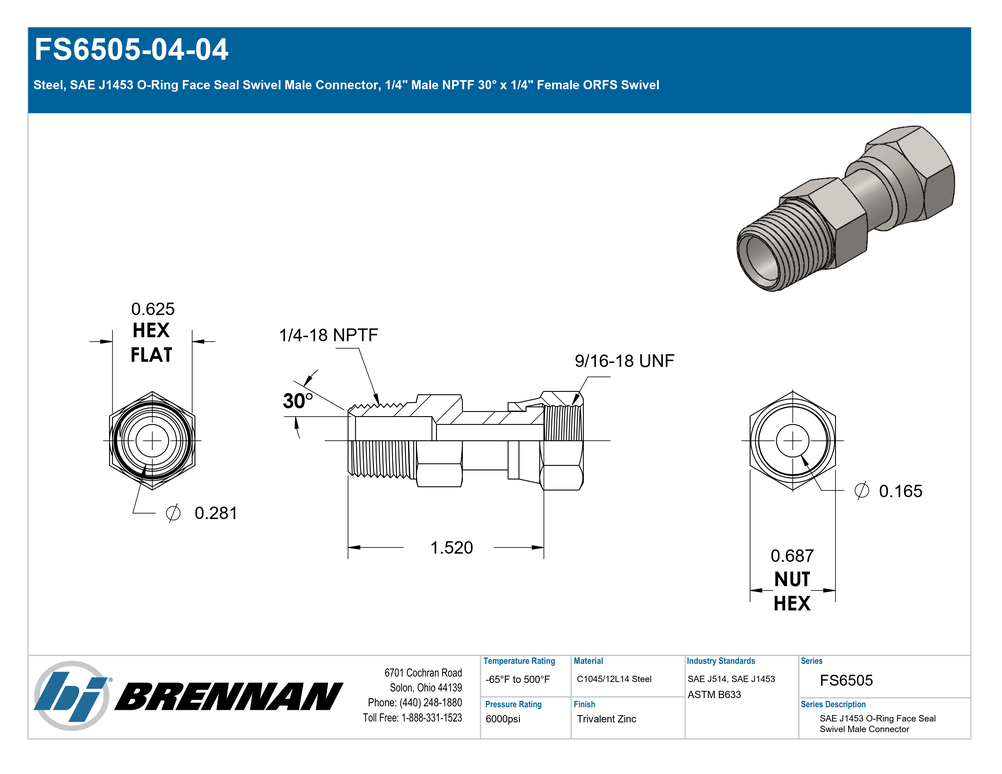

Steel, SAE J1453 O-Ring Face Seal Swivel Male Connector, 1/4" Male NPTF 30° x 1/4" Female ORFS Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female ORFS Swivel","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1453 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4-4 F6L-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female ORFS Swivel |
| Technical Series Configuration | SAE J476 Male NPTF x SAE J1453 Female ORFS Swivel Tube Connector |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female ORFS Swivel |
| Shape | Straight |
| Product Type | Fittings |
