Attributes
| Part Number | 2502-16-16-B |
|---|---|
| Is Series Page | 0 |
Description

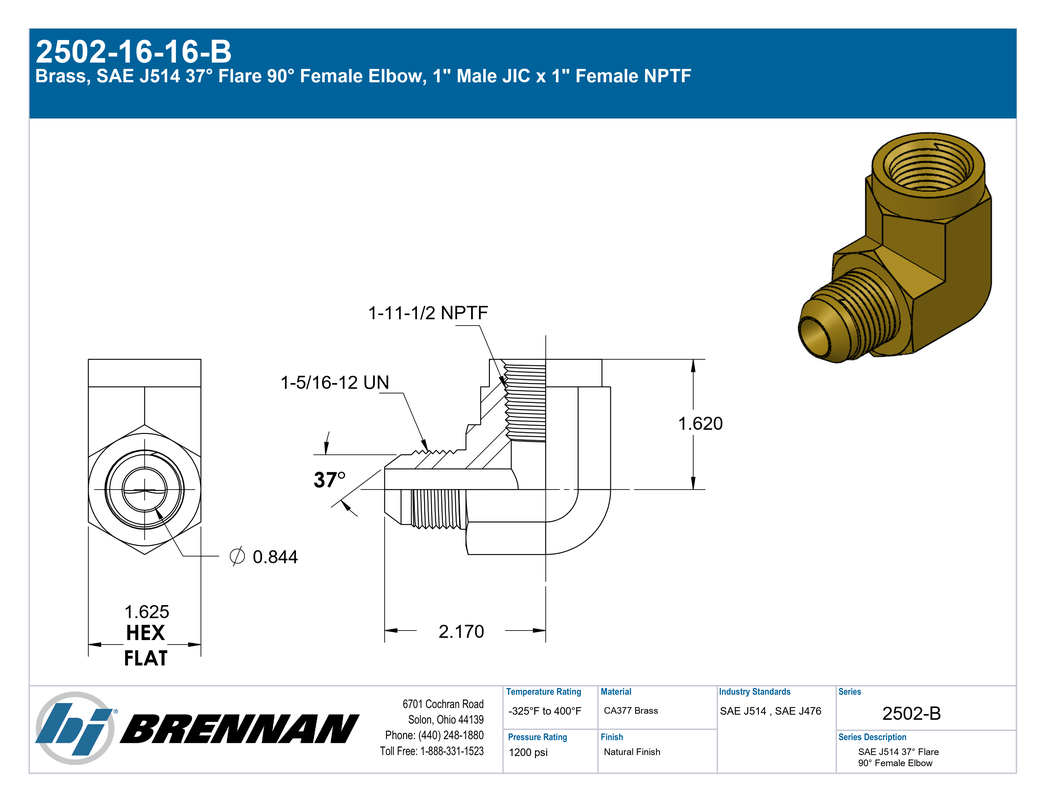

Brass, SAE J514 37° Flare 90° Female Elbow, 1" Male JIC x 1" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Female Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Hex/Wrench":"1.625","Weight":"1.22 lb"} |
| Performance Specifications | {"Working Pressure":"1200 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"4800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2025-16-16B","Parker Hose Part Number":"2203-16-16-B","Parker TFD Part Number":"16 DTX-B","SAE J514 Part Number":"SAE J514 16-16 070203B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Female NPTF 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female NPTF |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
