| Part Number | 0403-20-16-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Tube Bore Male Flared Connector, 1-1/4" Bore x 1" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Bore","Side 1 Tube OD":"1-1/4\"","Side 1 Standard":"Not Defined","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.50 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-73014-20-16","Parker TFD Part Number":"16-20 XHB3-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Tube Bore x Male JIC |
| Technical Series Configuration | SAE J514 Tube Bore x Male JIC Tube Connector |
| Side 1 Connection Type | Bore |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

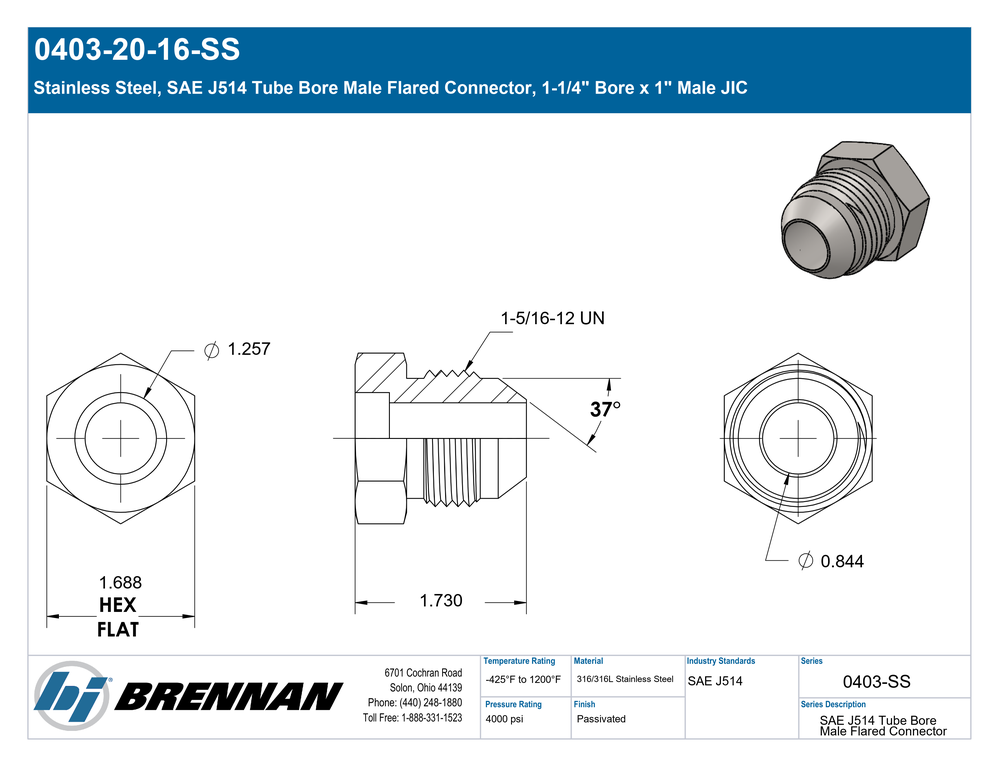

Specification Sheet
