Attributes
| Part Number | C0319-10 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 Flareless Tube Ferrule, 5/8" Flareless Bite Type Sleeve
Specifications
| Connection Details | {"Connection Type":"Flareless Bite Type Sleeve","Tube OD":"5/8\"","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Ferrule","Primary Material":"Steel","Material Grade":"12L14/C1045","Surface Treatment":"Heat Treated and Hardened","Plating":"Zinc Phospate"} |
| Dimensions | {"Weight":"0.01 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F"} |
| Cross References | {"Aeroquip Part Number":"7165X10","Parker Hose Part Number":"110-10","Parker TFD Part Number":"10 TU-S","SAE J514 Part Number":"SAE J514 10 080115AC"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Flareless Tube Ferrule |
| Technical Series Configuration | SAE J514 Flareless Tube Ferrule, Type A |
| Side 1 Connection Type | Flareless Bite Type Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents

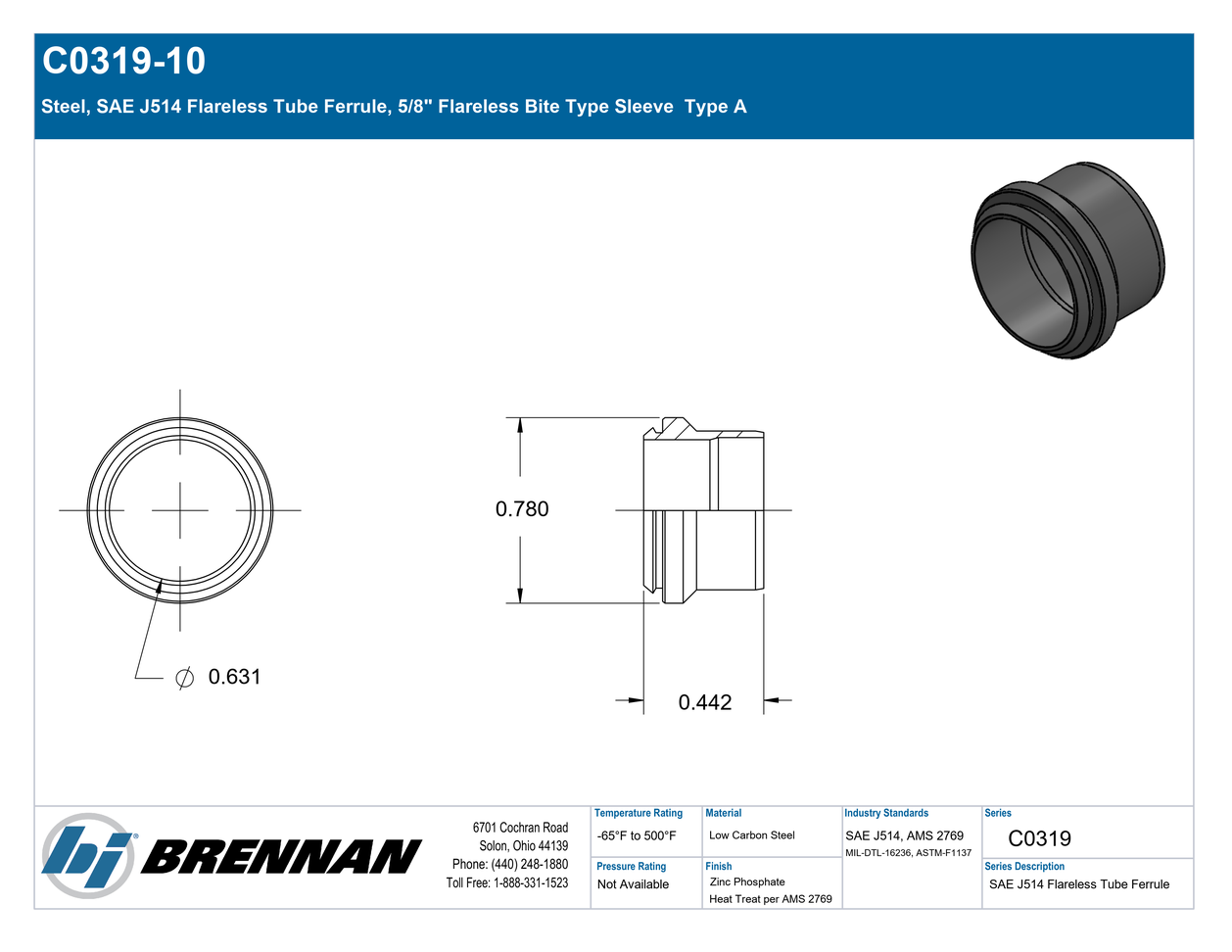

Specification Sheet
