Attributes
| Part Number | 9644-C-32-SS |
|---|---|
| Is Series Page | 0 |
Description

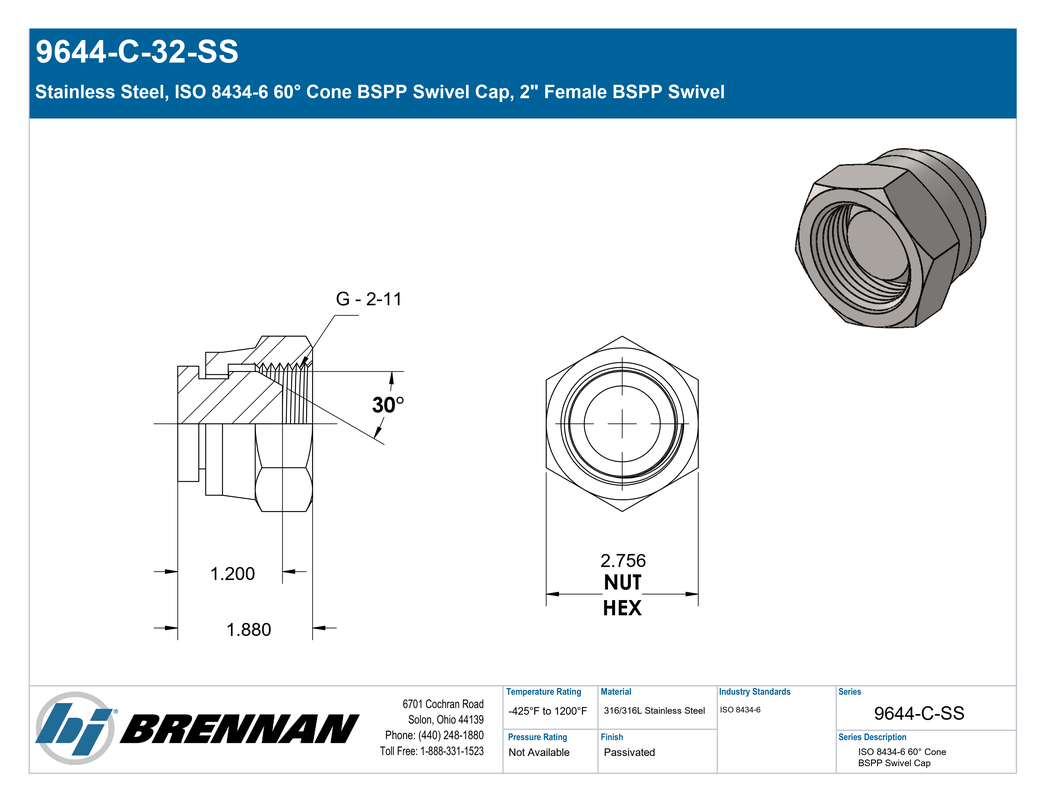

Stainless Steel, ISO 8434-6 60° Cone BSPP Swivel Cap, 2" Female BSPP Swivel
Specifications
| Connection Details | {"Connection Type":"Female BSPP Swivel","Tube OD":"2\"","Thread Type":"G - 2-11","Standard":"ISO 8434-6","Connection Standard":"ISO 8434-6","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Swivel Cap","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"2.756","Weight":"1.72 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Parker TFD Part Number":"32FNMK4SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPP Swivel Cap |
| Technical Series Configuration | ISO 8434-6 Female BSPP Swivel Line Cap |
| Side 1 Connection Type | Female BSPP Swivel |
| Shape | Cap/Plug |
| Product Type | Fittings |
