Attributes
| Part Number | 4404-10-08-B |
|---|---|
| Is Series Page | 0 |
Description

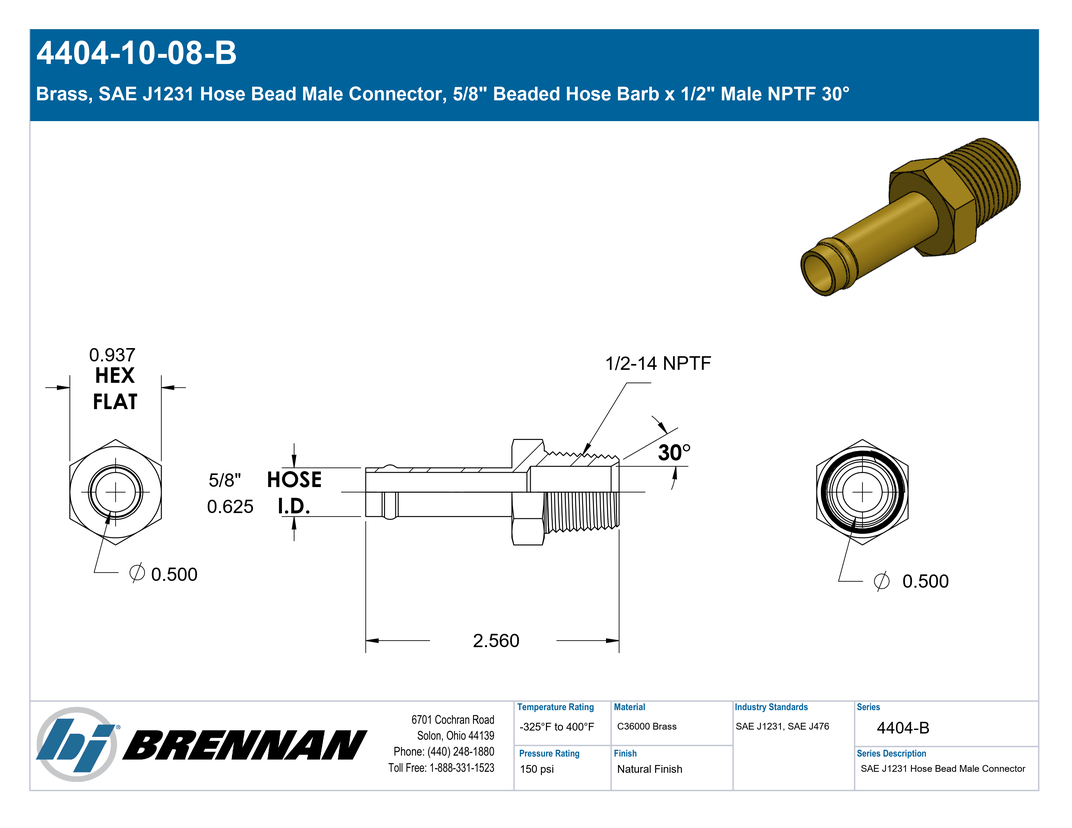

Brass, SAE J1231 Hose Bead Male Connector, 5/8" Beaded Hose Barb x 1/2" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Beaded Hose Barb","Side 1 Hose ID":"5/8\"","Side 1 Standard":"SAE J1231-2","Side 1 Role":"Hose Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Aeroquip Part Number":"FF1829-0810B","Parker TFD Part Number":"68HB-10-8","SAE J1231 Part Number":"SAE J1231 8-10 430160B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Hose Bead x Male Pipe |
| Technical Series Configuration | SAE J1231 Hose Bead x SAE J476 Male NPTF Connector |
| Side 1 Connection Type | Beaded Hose Barb |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
