Attributes
| Part Number | 6402-24-24-O-SS |
|---|---|
| Is Series Page | 0 |
Description

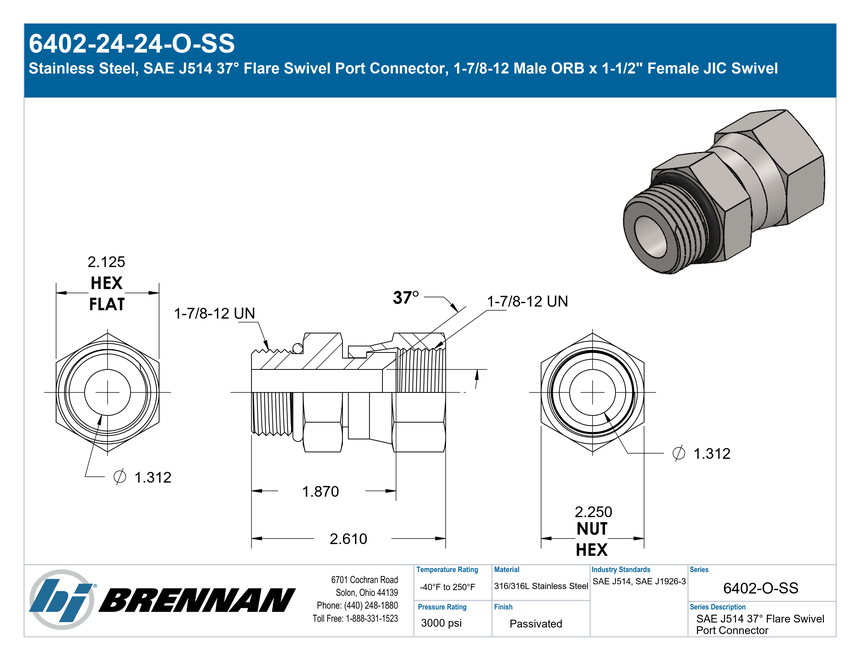

Stainless Steel, SAE J514 37° Flare Swivel Port Connector, 1-7/8-12 Male ORB x 1-1/2" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-24","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"1.28 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2266-24-24","Parker TFD Part Number":"24 F65OX-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORB x Female JIC Swivel |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J514 Female JIC Swivel Connector |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
