Attributes
| Part Number | 6900-10-12-O |
|---|---|
| Is Series Page | 0 |
Description

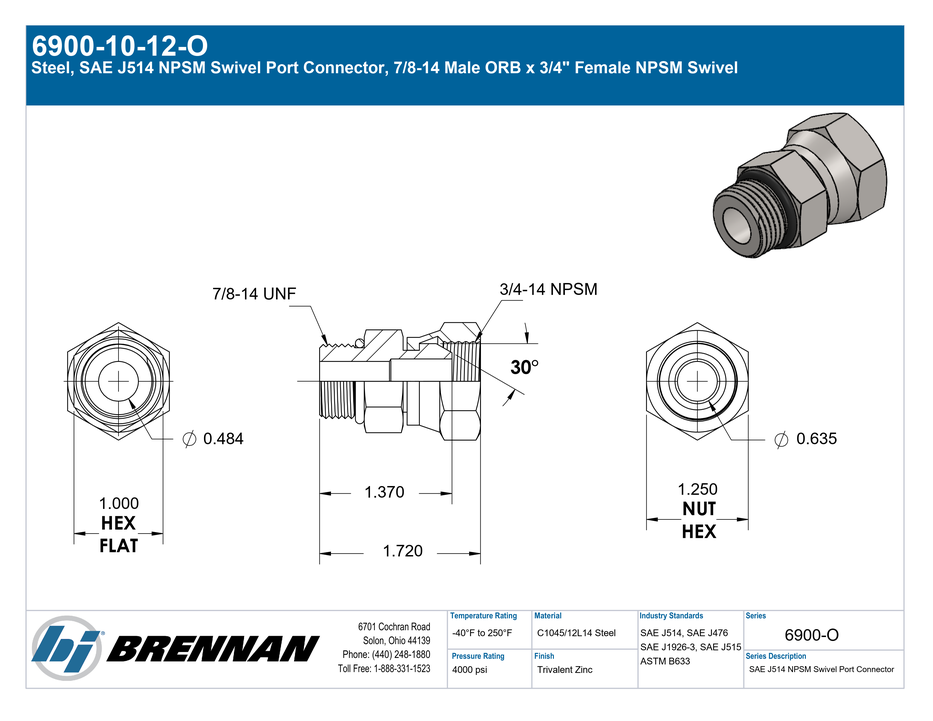

Steel, SAE J514 NPSM Swivel Port Connector, 7/8-14 Male ORB x 3/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-10","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.25 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2066-12-10S","Parker Hose Part Number":"0507-10-12","Parker TFD Part Number":"0507-10-12","SAE J514 Part Number":"SAE J514 12-10 140157CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB x Female Pipe Swivel |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J476 Female NPSM Swivel Connector |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | Straight |
| Product Type | Fittings |
