Attributes
| Part Number | FS0304-C-32 |
|---|---|
| Is Series Page | 0 |
Description

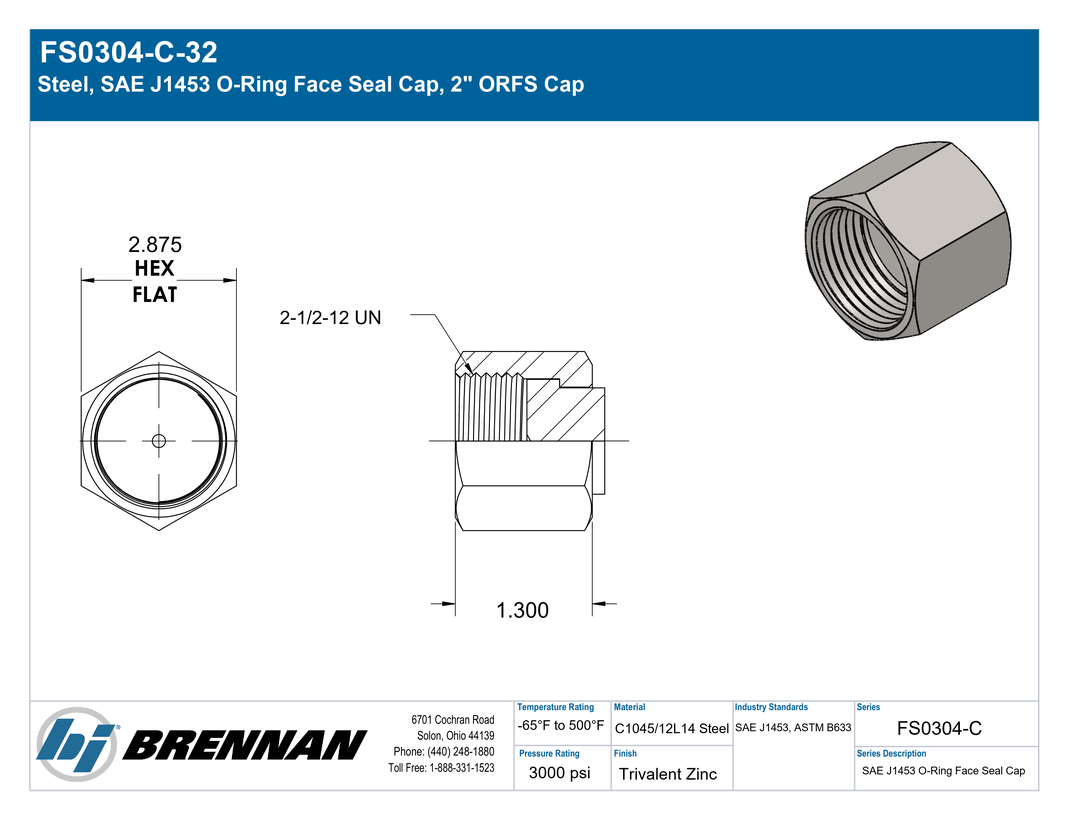

Steel, SAE J1453 O-Ring Face Seal Cap, 2" ORFS Cap
Specifications
| Connection Details | {"Connection Type":"ORFS Cap","Tube OD":"2\"","Thread Type":"2-1/2-12 UN","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.87 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF9863-32S","Parker TFD Part Number":"32 FNL-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | ORFS Cap |
| Technical Series Configuration | SAE J1453 ORFS Tube Cap |
| Side 1 Connection Type | ORFS Cap |
| Shape | Cap/Plug |
| Product Type | Fittings |
