Attributes
| Part Number | 9522-P-08-SS |
|---|---|
| Is Series Page | 0 |
Description

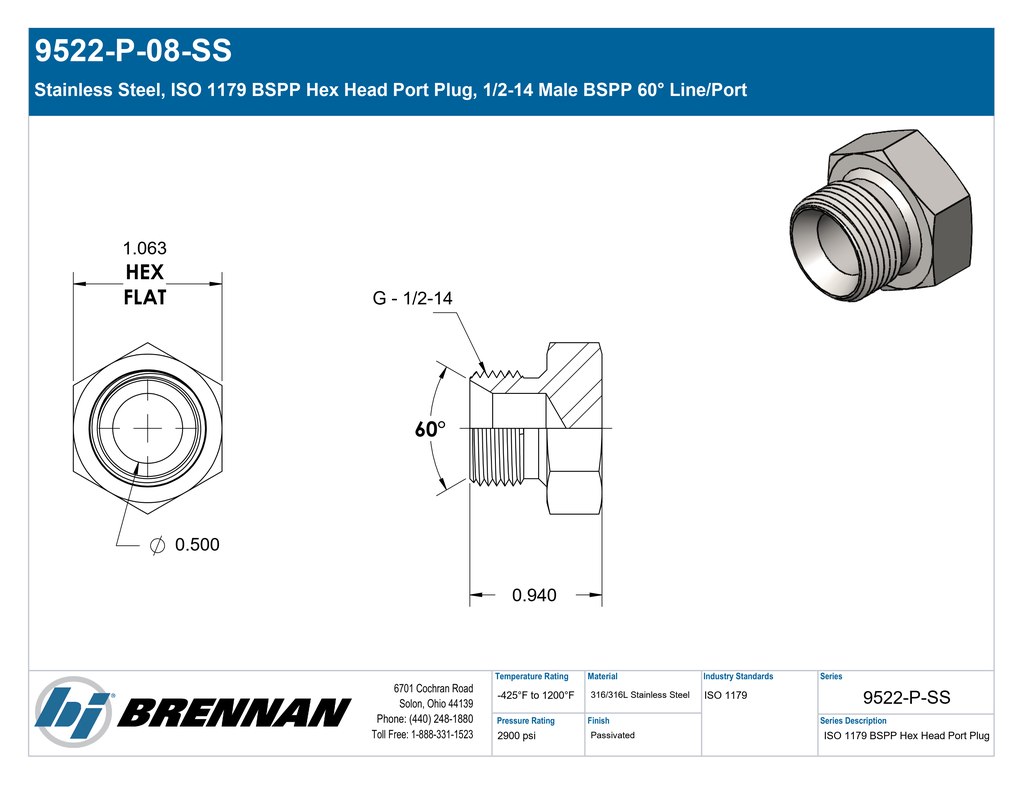

Stainless Steel, ISO 1179 BSPP Hex Head Port Plug, 1/2-14 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Connection Type":"Male BSPP 60° Line/Port","Thread Type":"G - 1/2-14","Standard":"ISO 1179","Connection Standard":"ISO 1179","Role":"Line/Port Connection","Connection Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Hex Head Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.063","Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8PNMK4SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male BSPP Hex Head Plug |
| Technical Series Configuration | ISO 1179 Male BSPP Port Hex Head Plug |
| Side 1 Connection Type | Male BSPP 60° Line/Port |
| Shape | Cap/Plug |
| Product Type | Fittings |
