Attributes
| Part Number | 7005-04-L08-14-BS |
|---|---|
| Is Series Page | 0 |
Description

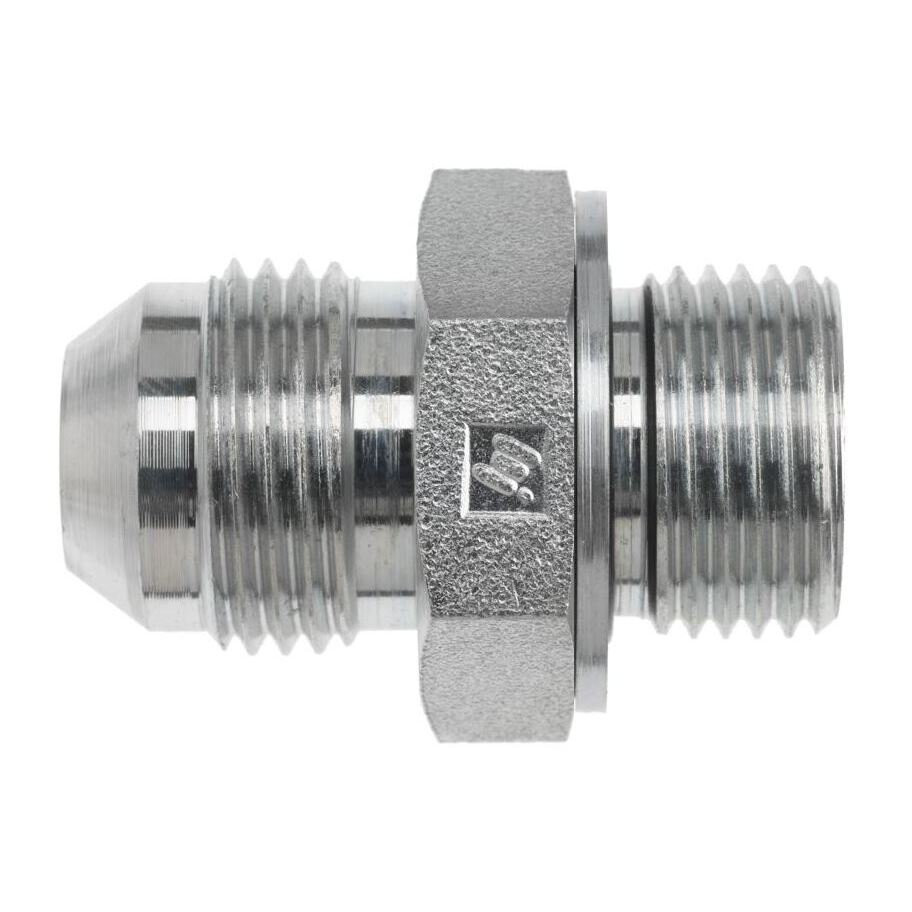

Steel, SAE J514 37° Flare DIN 2353 (Light) Tube Adapter Bonded Seal, 1/4" Male JIC x M14X1.5 Male DIN Line/Tube/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN Line/Tube/Port","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"ISO 8434-1, ISO 9974","Side 2 Role":"Line/Tube/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.669","Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric Light Series DIN Compression / Dual Purpose Port |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1 / ISO 9974 Light Series Male Metric Line / Port Adapter With Bonded Seal |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male DIN Line/Tube/Port |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

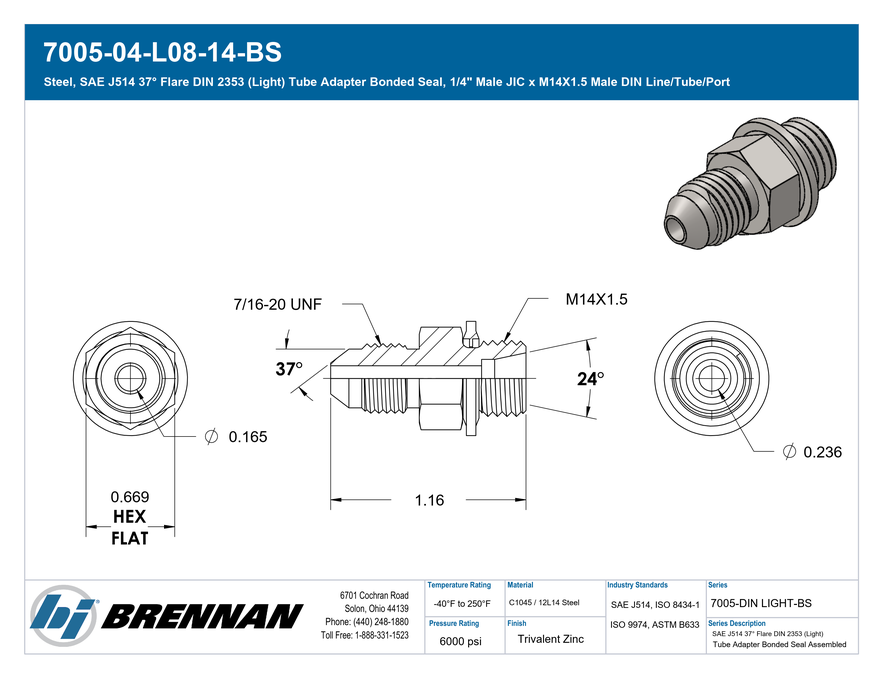

Specification Sheet
Open PDF
