Attributes
| Part Number | D0318-L42-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, DIN 2353 Tube Nut, Light 42mm Tube OD
Specifications
| Connection Details | {"Connection Type":"DIN Tube Nut","Tube OD":"42mm","DIN Pressure Series":"Light","Thread Type":"Female Metric","Standard":"DIN 2353","Connection Standard":"DIN 2353","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"60mm","Weight":"0.50 lb"} |
| Performance Specifications | {"Working Pressure":"3626 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"14504 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"M42L71X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube Nut |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Nut |
| Side 1 Connection Type | DIN Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents

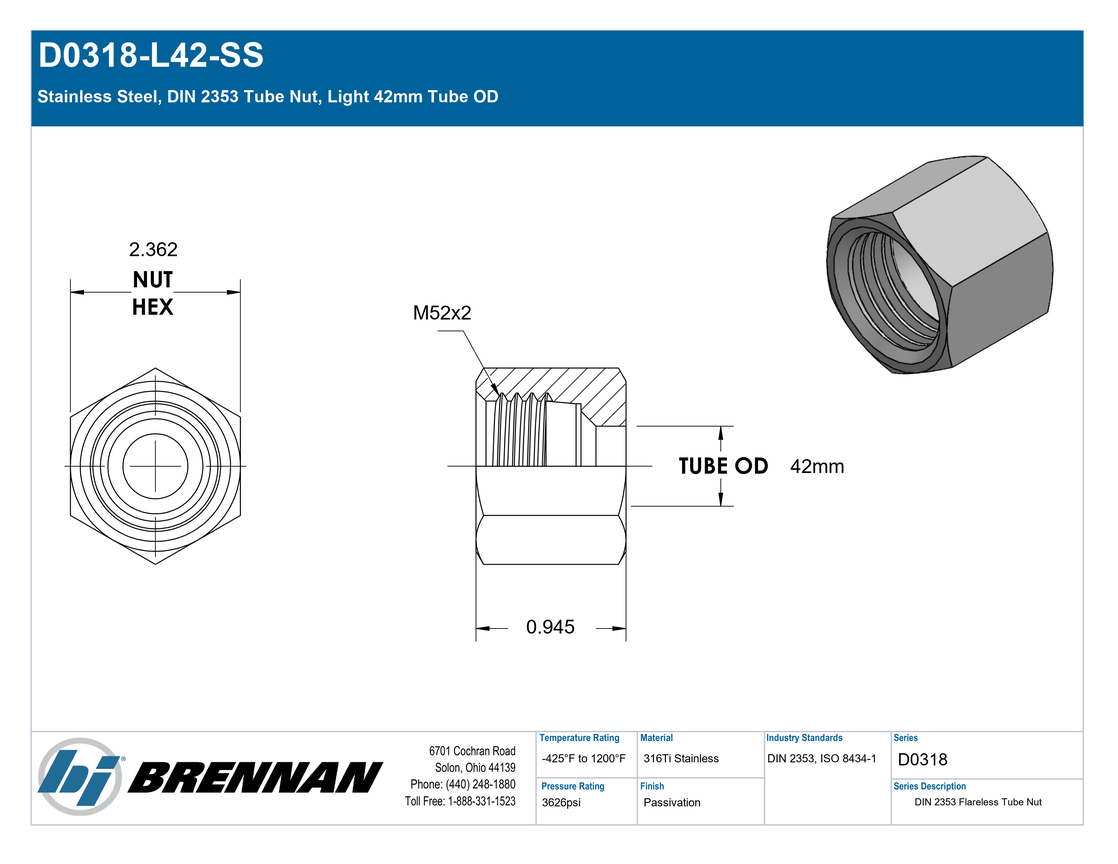

Specification Sheet
