Attributes
| Part Number | FS6804-10-10-06-NWO-FG |
|---|---|
| Is Series Page | 0 |

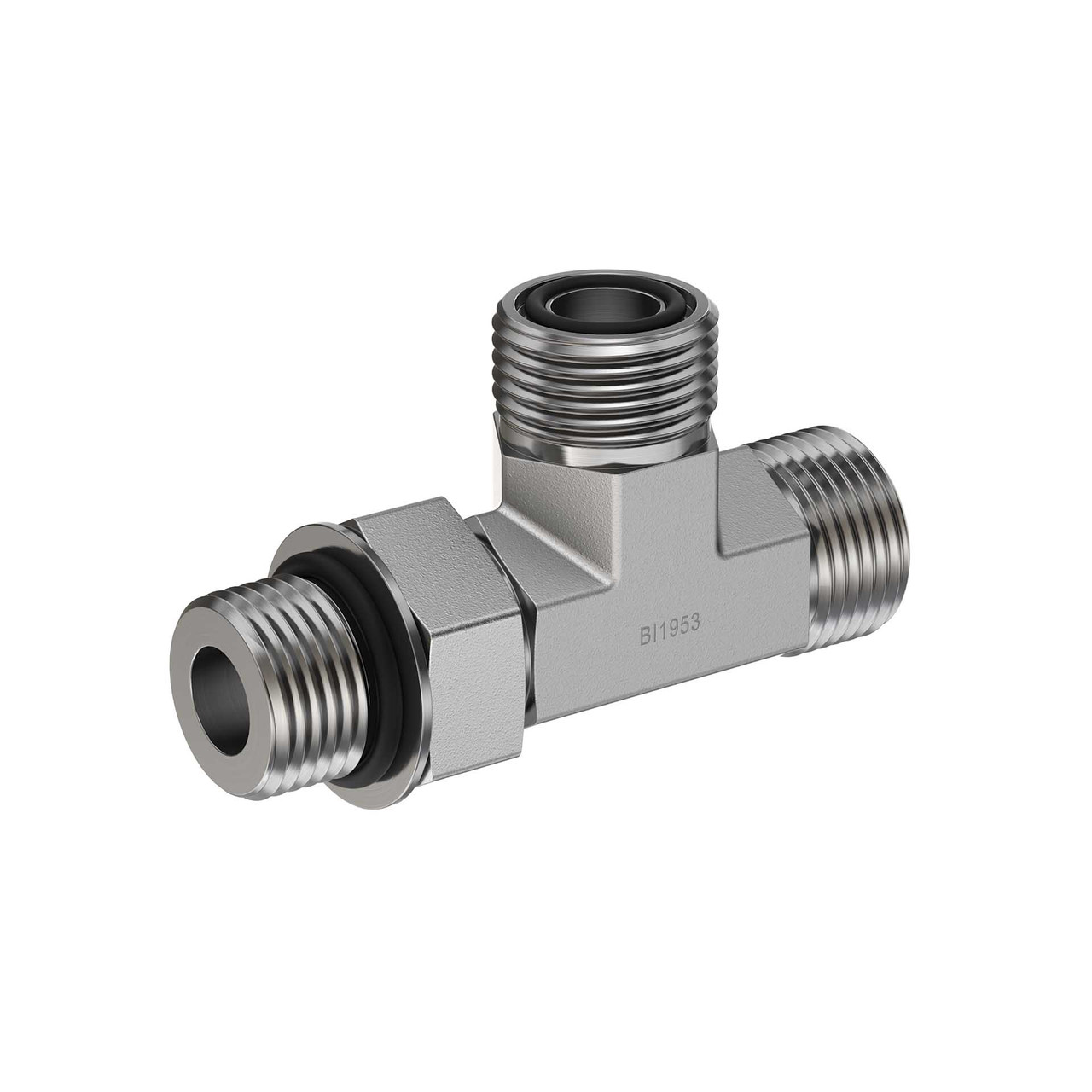

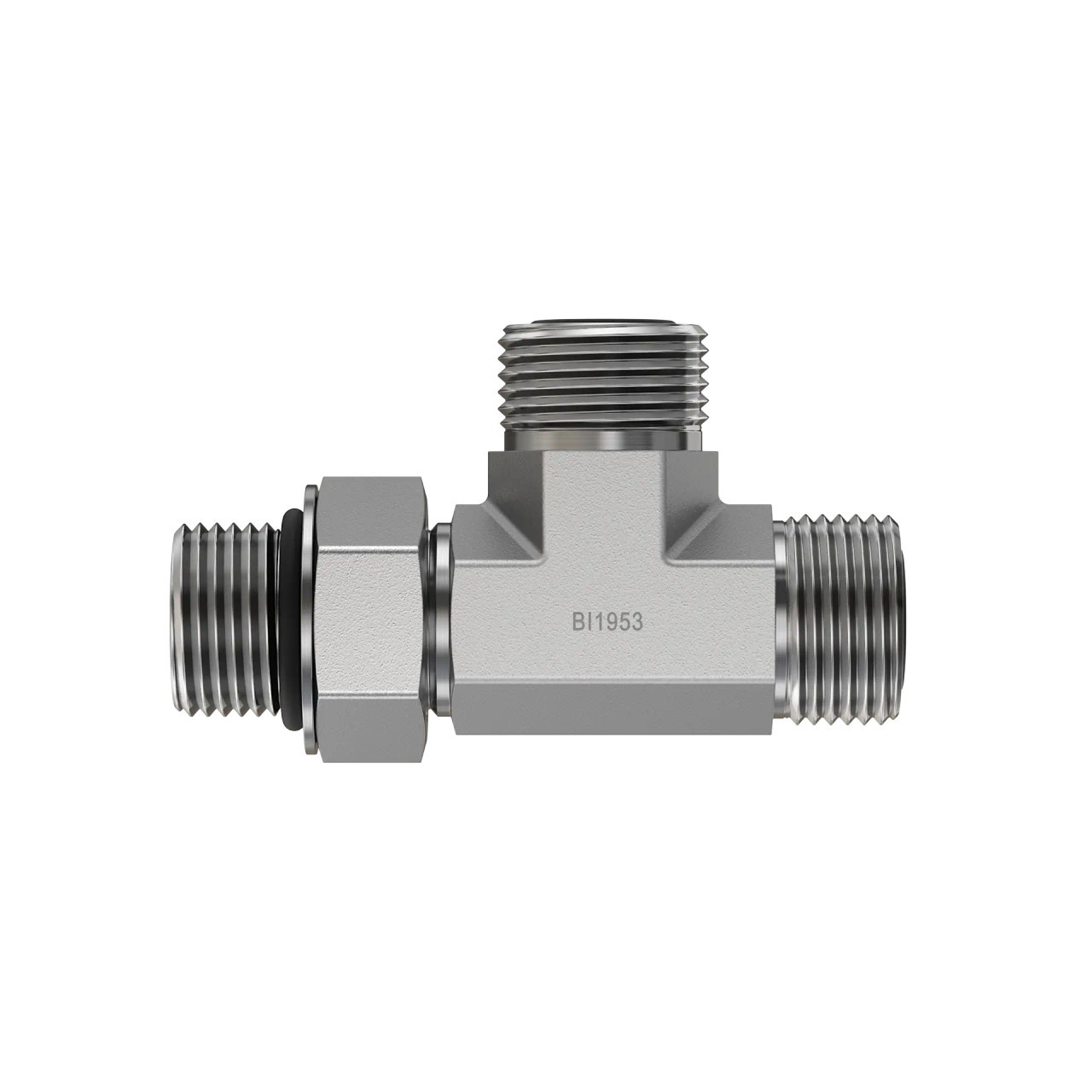

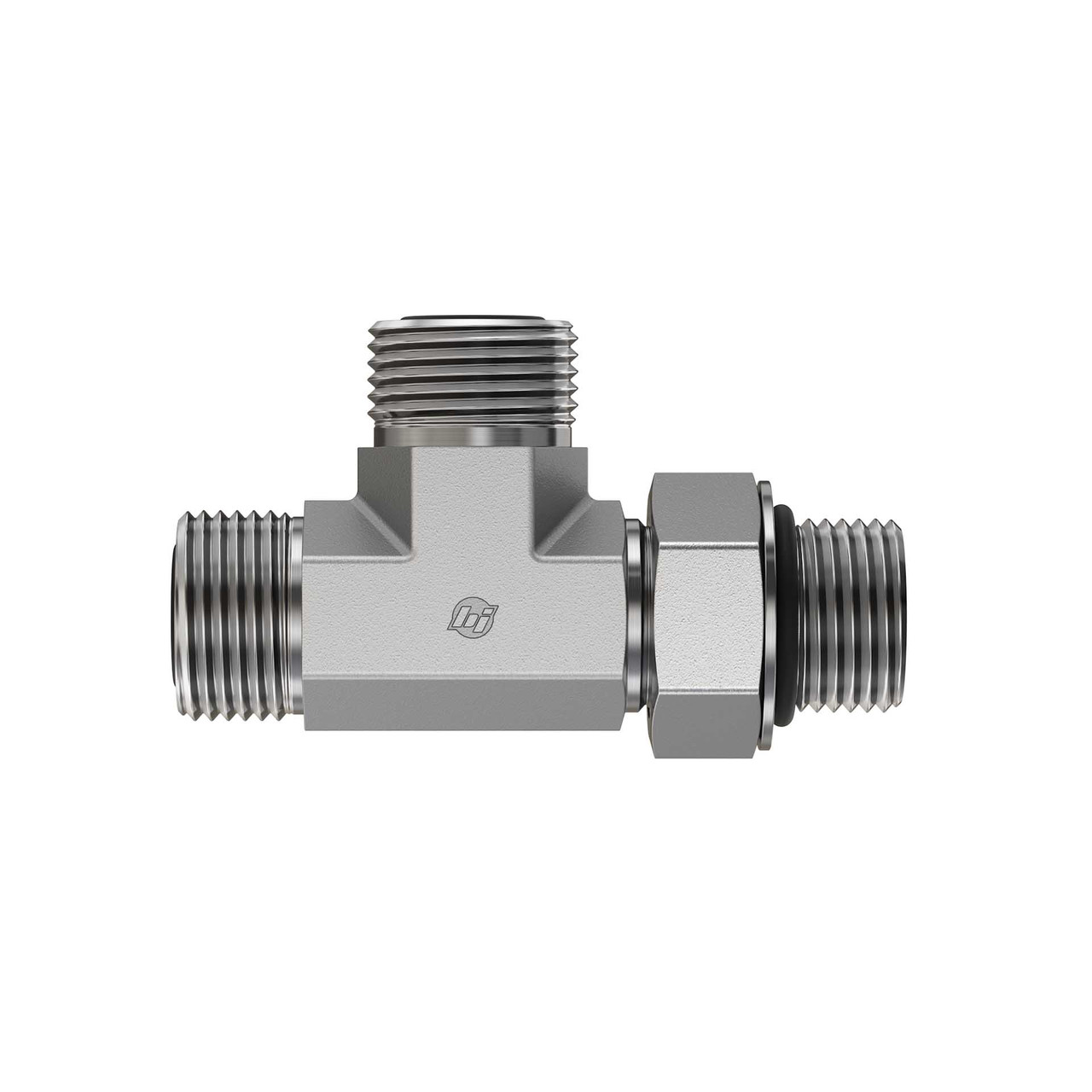

Description
Steel, SAE J1453 O-Ring Face Seal Adjustable Port Run Tee, 5/8" Male ORFS x 7/8-14 Male Adjustable ORB x 3/8" Male ORFS
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"1-14 UNS","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-10","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-10","Side 3 Connection Type":"Male ORFS","Side 3 Tube OD":"3/8\"","Side 3 Thread Type":"11/16-16 UNF","Side 3 Standard":"SAE J1453 - Class 2A Thread","Side 3 Role":"Line/Tube Connection","Side 3 Replacement Seal":"FS4000-06"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Adjustable Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.66 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"10-10-6 R5OLO-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male Adjustable ORB x Male ORFS |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x SAE J1926-2 Male Adjustable O-Ring Boss x Male ORFS Run Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

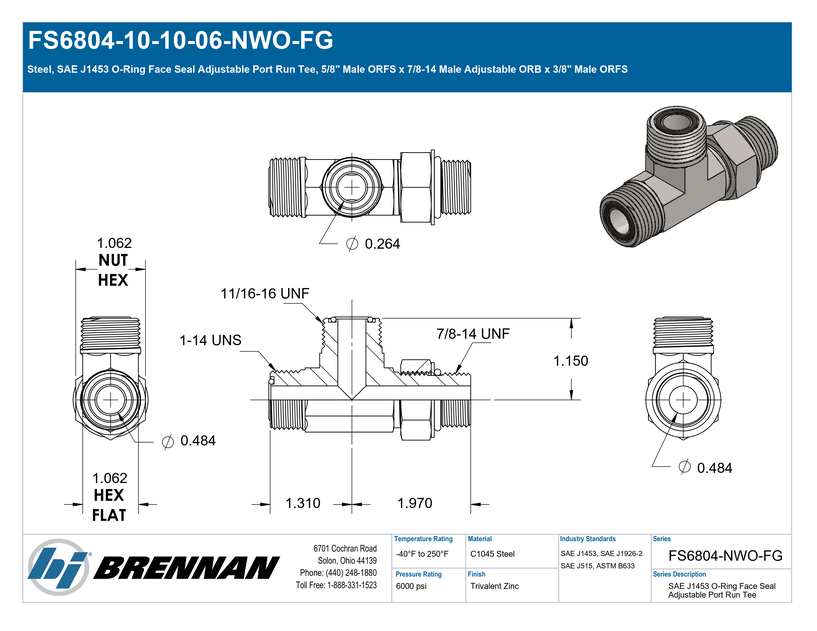

Specification Sheet
