| Part Number | 2405-14-16 |
|---|---|
| Is Series Page | 0 |
Description

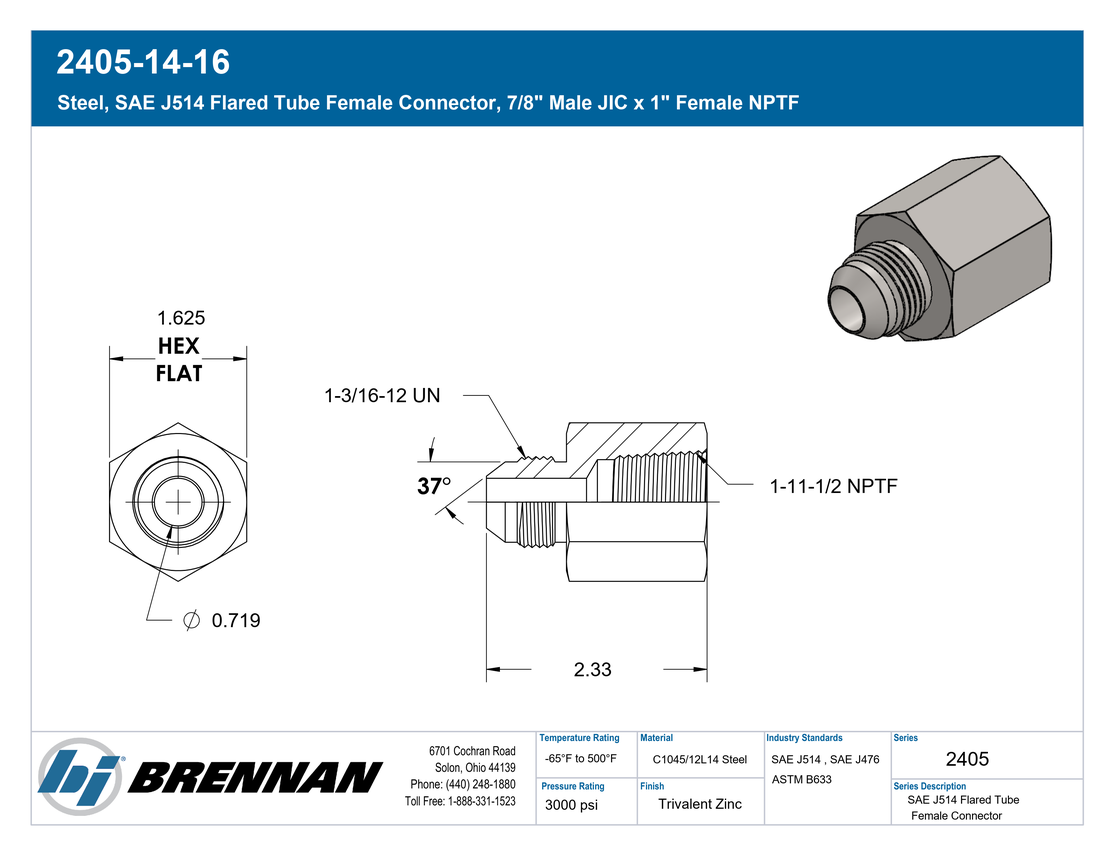

Steel, SAE J514 37° Flare Female Connector, 7/8" Male JIC x 1" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"7/8\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.625","Weight":"0.63 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2022-16-14S","Parker Hose Part Number":"0203-16-14","Parker TFD Part Number":"14-16 GTX-S","SAE J514 Part Number":"SAE J514 14-16 070103C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
