Attributes
| Part Number | 1700-12-20 |
|---|---|
| Is Series Page | 0 |
Description

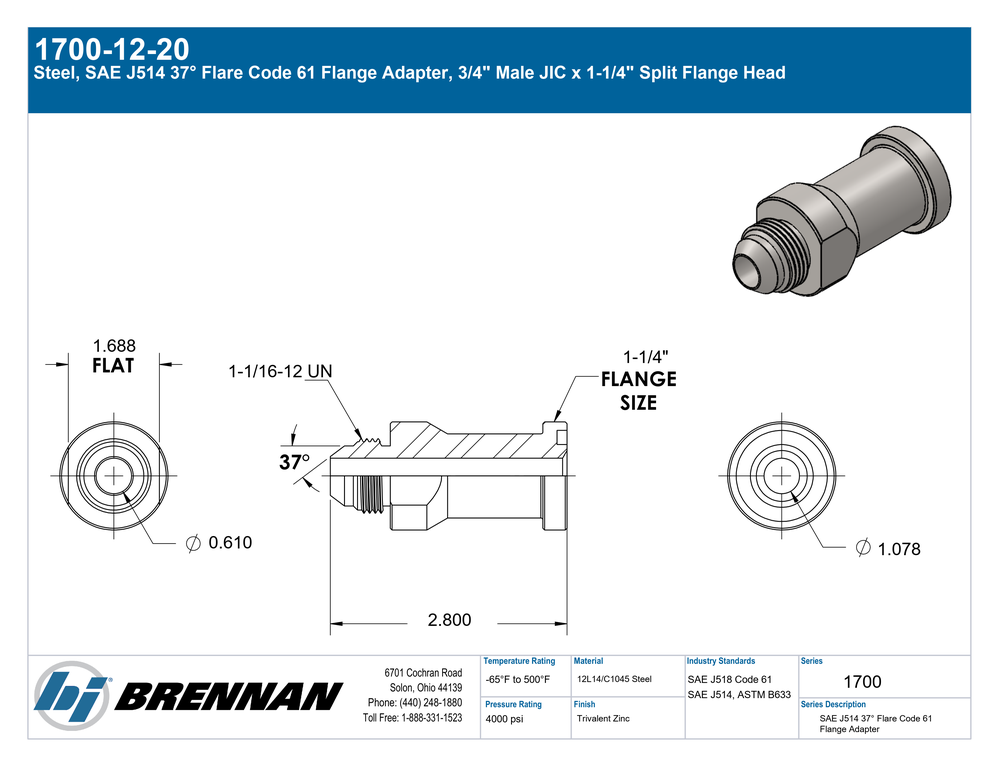

Steel, SAE J514 37° Flare Code 61 Flange Adapter, 3/4" Male JIC x 1-1/4" Split Flange Head
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Split Flange Head","Side 2 Flange Size":"1-1/4\"","Side 2 Standard":"SAE J518","Side 2 Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.02 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"500025-20-12S","Parker Hose Part Number":"4AH3-20-12","Parker TFD Part Number":"12-20 XHQ1-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Code 61 Flange |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J518 Code 61 Split Flange Head Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Split Flange Head |
| Shape | Straight |
| Product Type | Fittings |
