Attributes
| Part Number | 1405-06-04-SS |
|---|---|
| Is Series Page | 0 |
Description

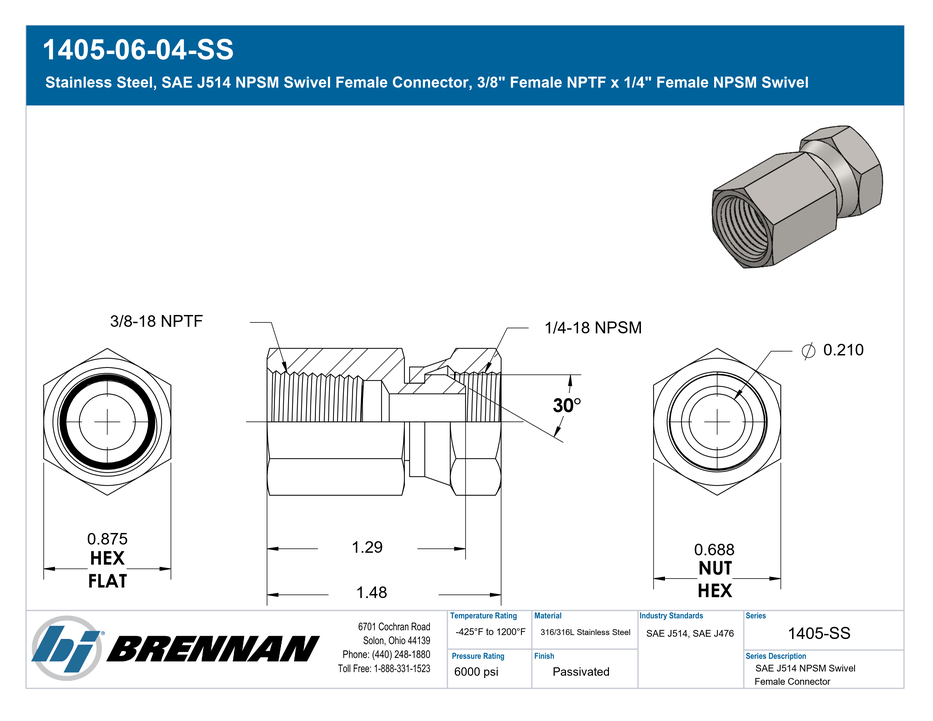

Stainless Steel, SAE J514 NPSM Swivel Female Connector, 3/8" Female NPTF x 1/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Swivel Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2046-4-6","Parker TFD Part Number":"0207-6-4-SS","SAE J514 Part Number":"SAE J514 4-6 140131S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe Swivel |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPSM Swivel Connector |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | Straight |
| Product Type | Fittings |
