Attributes
| Part Number | 6500-05-05-SS |
|---|---|
| Is Series Page | 0 |
Description

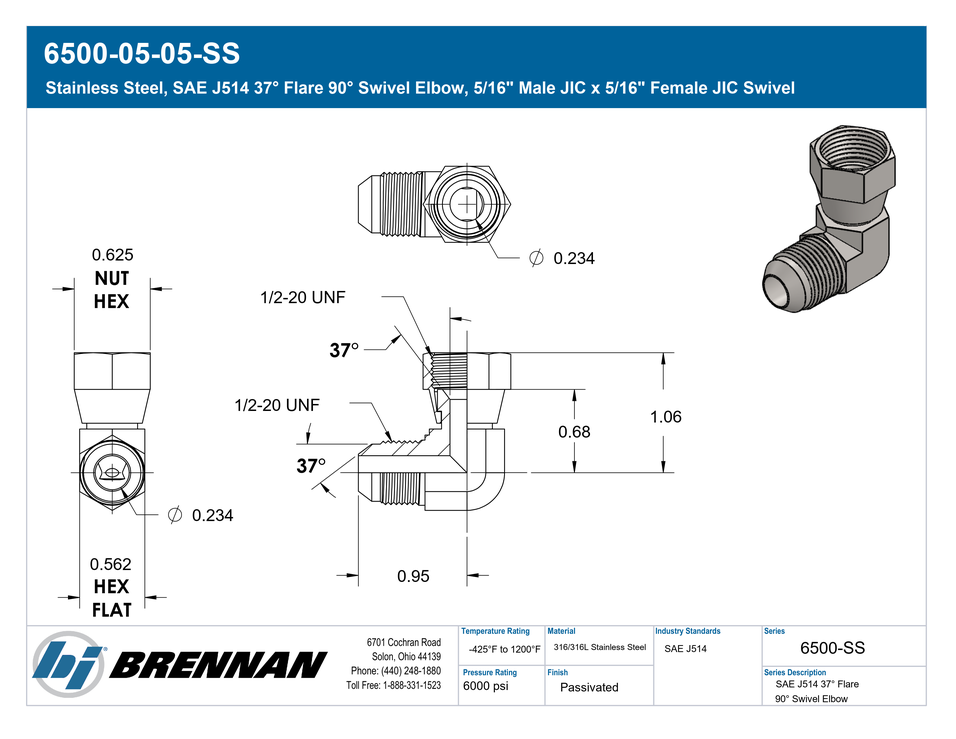

Stainless Steel, SAE J514 37° Flare 90° Swivel Elbow, 5/16" Male JIC x 5/16" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"5/16\"","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2071-5-5","Parker TFD Part Number":"5 C6X-SS","SAE J514 Part Number":"SAE J514 5-5 070221S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Female JIC Swivel |
| Technical Series Configuration | SAE J514 Male JIC Tube x Female JIC Swivel Tube 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
