2404-04-02-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.500","Weight":"0.04 lb"}
2405-24-24-B
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"1-1/2-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} Dimensions: {"Hex/Wrench":"2.375","Weight":"1.59 lb"}
2606-06-06-06-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/8\"","Side 3 Thread Type":"9/16-18 UNF","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Female Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.875","Weight":"0.31 lb"}
7005-10-20
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M20X1.5","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.000","Weight":"0.17 lb"}
2405-24-16-B
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} Dimensions: {"Hex/Wrench":"2.000","Weight":"1.30 lb"}
2603-24-24-12-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/4\"","Side 3 Thread Type":"1-1/16-12 UN","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.875","Weight":"1.57 lb"}
2702-LN-03-03-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/16\"","Side 1 Thread Type":"3/8-24 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/16\"","Side 2 Thread Type":"3/8-24 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"45° Elbow","Shape Type":"Bulkhead Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} Dimensions: {"Weight":"0.07 lb"}
6602-10-16-10-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"5/8\"","Side 3 Thread Type":"7/8-14 UNF","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Swivel Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Weight":"0.66 lb"}
2404-03-02-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/16\"","Side 1 Thread Type":"3/8-24 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.438","Weight":"0.03 lb"}

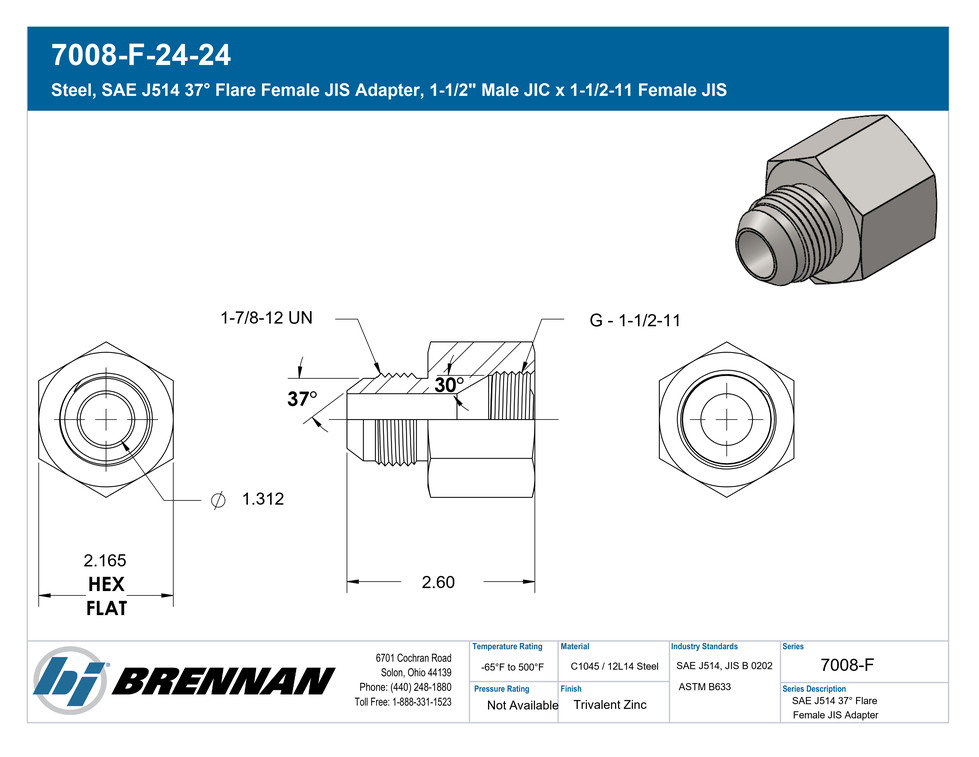

7008-F-24-24
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIS","Side 2 Thread Type":"G - 1-1/2-11","Side 2 Standard":"JIS B 0202","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"2.165","Weight":"1.09 lb"}
7204-32-32-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 2-11","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"2.625","Weight":"4.11 lb"}
2502-08-04-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.750","Weight":"0.22 lb"}
7005-12-L22-30-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.260","Weight":"0.51 lb"}
7005-12-16
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.17 lb"}
6400-06-10-O-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-10"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.17 lb"}
6500-08-10-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L"} Dimensions: {"Weight":"0.59 lb"}
7002-08-10-SS-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 5/8-14","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"9900-10"} Body & Materials: {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.25 lb"}
2406-02-04-SS
Connection Details: {"Side 1 Connection Type":"Female JIC","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-24 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Stainless Steel","Material Grade":"316/316L"} Dimensions: {"Weight":"0.29 lb"}
7709-24-24-VITON
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP ED Seal","Side 2 Thread Type":"G - 1-1/2-11","Side 2 Standard":"DIN 3852-11, ISO 1179-2","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"ED4000-24-VITON"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.80 lb"}
2404-02-02-B
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-24 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} Dimensions: {"Hex/Wrench":"0.438","Weight":"0.03 lb"}
2607-08-08-08-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection","Side 3 Connection Type":"Male NPTF 30°","Side 3 Pipe Size":"1/2\"","Side 3 Thread Type":"1/2-14 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.875","Weight":"0.35 lb"}
2764-04-04-O
Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-04","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.09 lb"}
2502-05-04-B
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} Dimensions: {"Hex/Wrench":"0.750","Weight":"0.18 lb"}
