349 matching products
Clear
7005-04-L10-16-NBR
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.669","Weight":"0.10 lb"}
7007-04-L06-12
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M12X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.551","Weight":"0.07 lb"}
7207-06-L08-14
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.551","Weight":"0.41 lb"}
7005-08-L08-14-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.13 lb"}
7005-04-S08-16-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.669","Weight":"0.11 lb"}
7005-05-S08-16-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.669","Weight":"0.12 lb"}
7005-12-L35-45-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M45X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.811","Weight":"0.43 lb"}

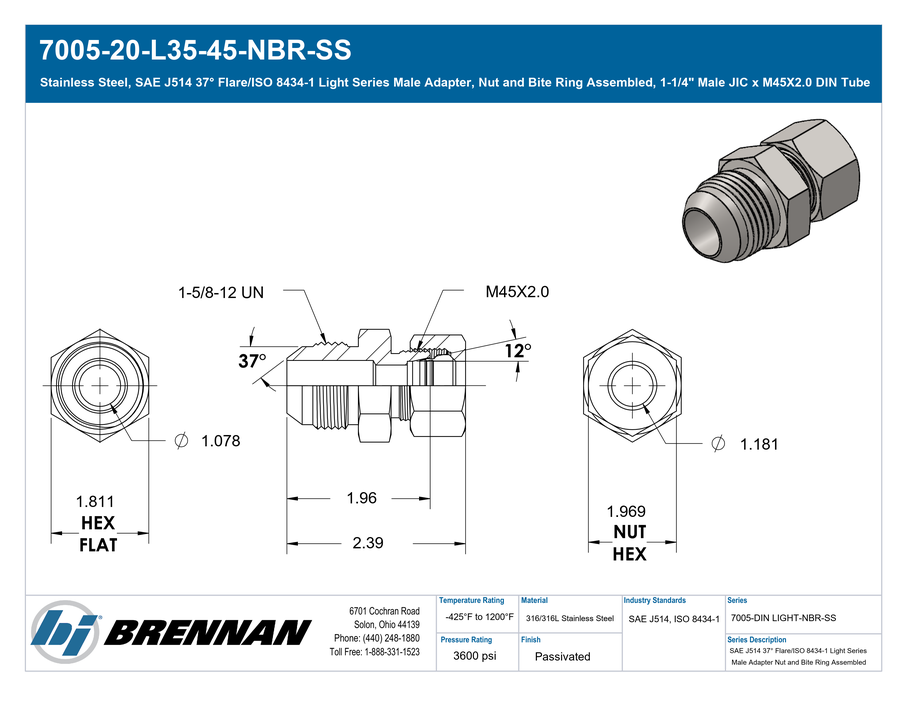

7005-20-L35-45-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M45X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.811","Weight":"1.03 lb"}
7005-08-L15-22
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.945","Weight":"0.14 lb"}
7007-12-S20-30-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.55 lb"}
7005-08-S12-20-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN Line/Tube/Port","Side 2 Thread Type":"M20X1.5","Side 2 Standard":"ISO 8434-1, ISO 9974","Side 2 Role":"Line/Tube/Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.14 lb"}
7005-04-L08-14-NBR
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.669","Weight":"0.08 lb"}
7007-10-S20-30
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.06 lb"}
7005-10-S16-24-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M24X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.36 lb"}
7005-04-S06-14-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.551","Weight":"0.06 lb"}
7005-10-L18-26-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M26X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.18 lb"}
7005-16-S30-42
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M42X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.811","Weight":"0.71 lb"}
7005-16-L22-30-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.417","Weight":"0.59 lb"}
7006-06-08-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Standpipe","Side 2 Standard":"ISO 8434-1, DIN 2353","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.625","Weight":"0.06 lb"}
7005-16-S20-30
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.500","Weight":"0.46 lb"}
7005-10-S16-24-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M24X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.22 lb"}
7005-16-L35-45X1.5-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Kobelco","Side 2 Thread Type":"M45X1.5","Side 2 Standard":"ISO 8434-1, DIN 235","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.811","Weight":"0.32 lb"}
7005-08-L12-18-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.748","Weight":"0.10 lb"}
