Brennan Product Browser
24,928Total
24,928Scraped
0Pending
976 matching products
Clear
7601-32-32-32-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"2\"","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male BSPT 30°","Side 3 Pipe Size":"2\"","Side 3 Thread Type":"R - 2-11","Side 3 Standard":"ISO 7-1","Side 3 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Male Branch Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"2.500","Weight":"3.00 lb"}
7012-10-10-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP ORR","Side 2 Thread Type":"G - 5/8-14","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.24 lb"}
7022-06-08-SS
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.19 lb"}
7204-12-12-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.56 lb"}
7065-10-12
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"R - 3/4-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.34 lb"}
7100-06-08-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"R - 1/2-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"45° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.16 lb"}
7200-12-08-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"R - 1/2-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.20 lb"}
7200-06-02-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"R - 1/8-28","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.562","Weight":"0.20 lb"}
7200-05-04-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"R - 1/4-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.562","Weight":"0.12 lb"}
7023-16-16
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 1-11","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Weight":"0.57 lb"}
7202-04-08-NWO-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP Adjustable ORR","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-08","Side 2 Replacement Washer":"9200-08-SS"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.875","Weight":"0.35 lb"}
7002-08-04-SS-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"9900-04"} Body & Materials: {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.787","Weight":"0.11 lb"}
7709-32-32
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP ED Seal","Side 2 Thread Type":"G - 2-11","Side 2 Standard":"DIN 3852-11, ISO 1179-2","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.69 lb"}
7022-10-04
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.19 lb"}
7000-04-04
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"R - 1/4-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.551","Weight":"0.05 lb"}
7204-04-04-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.437","Weight":"0.10 lb"}
7202-06-06-NWO-FG-B2351
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP Adjustable ORB","Side 2 Thread Type":"G - 3/8-19","Side 2 Standard":"JIS B2351","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9903-06"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.748","Weight":"0.41 lb"}
7002-05-02-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/8-28","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.630","Weight":"0.09 lb"}
7002-24-24-SS-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1-1/2-11","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"9900-24"} Body & Materials: {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"2.165","Weight":"1.03 lb"}
7065-10-06
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"R - 3/8-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.22 lb"}
7022-10-10-SS
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 5/8-14","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.27 lb"}

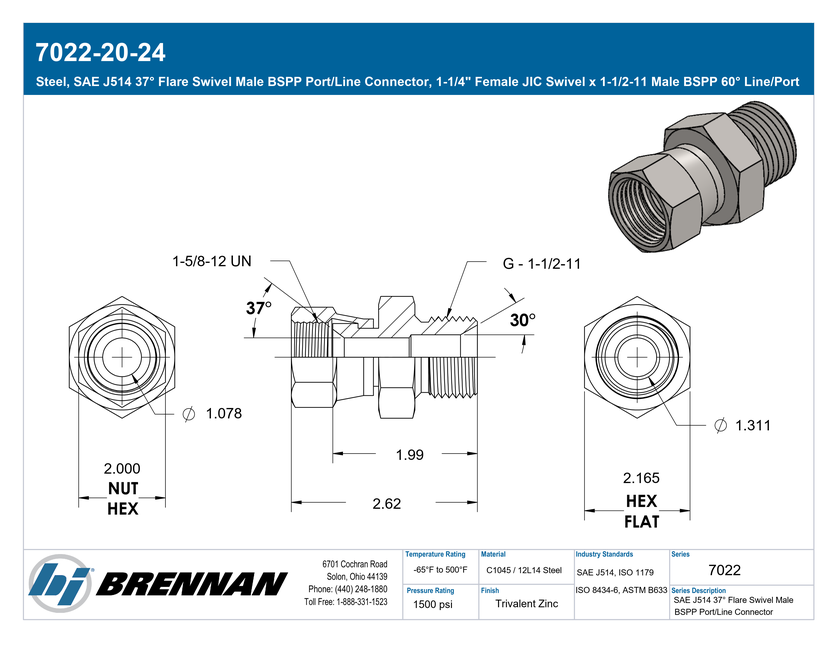

7022-20-24
Connection Details: {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1-1/2-11","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"2.165","Weight":"0.10 lb"}
7302-12-12-12-NWO-FG
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male BSPP Adjustable ORR","Side 3 Thread Type":"G - 3/4-14","Side 3 Standard":"ISO 1179","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"9901-12","Side 3 Replacement Washer":"9200-12"} Body & Materials: {"Shape":"Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.062","Weight":"0.81 lb"}
