412 matching products

Clear

6835-16-16-16-NWO-FG

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-16","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"1-5/16-12 UN","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Adjustable Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.21 lb"}

6807-24-24-NWO-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-24","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-24"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"2.31 lb"}

6660-04-04-04-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"7/16-20 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L"} Dimensions: {"Weight":"0.18 lb"}

6815-20-20-NWO-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-20","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1-5/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.75 lb"}

6408-02-O-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Connection Type":"Male ORB","Thread Type":"5/16-24 UNF","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4000-02"} Body & Materials: {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.02 lb"}

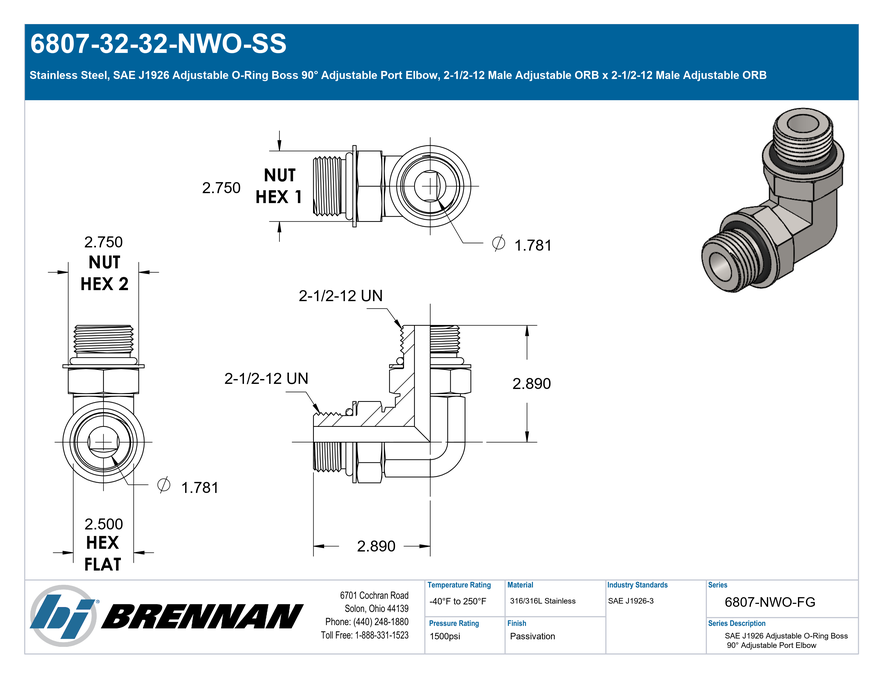

6807-32-32-NWO-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-32","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-32"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"4.71 lb"}

6425-06-06

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Weight":"0.13 lb"}

6410-04-05-O

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-04","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.09 lb"}

6410-12-12-O-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-12","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.42 lb"}

6835-04-04-04-NWO-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-04","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"7/16-20 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Adjustable Run Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.20 lb"}

6835-24-24-24-NWO-FG

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-24","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"1-7/8-12 UN","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} Body & Materials: {"Shape":"Tee","Shape Type":"Adjustable Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.99 lb"}

6425-08-08

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Weight":"0.18 lb"}

6410-12-06-O-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-12","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.26 lb"}

6832-08-08-08-NWO-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 3 Connection Type":"Male Adjustable ORB","Side 3 Thread Type":"3/4-16 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4000-08"} Body & Materials: {"Shape":"Tee","Shape Type":"Adjustable Branch Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.41 lb"}

6807-32-32-NWO-FG

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-32","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-32"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"4.62 lb"}

3474-LLL-04-04-NWO

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-04","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-04"} Body & Materials: {"Shape":"Straight","Shape Type":"Nipple","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.18 lb"}

6425-04-04-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Stainless Steel","Material Grade":"316/316L"} Dimensions: {"Weight":"0.09 lb"}

6410-10-10-O

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-10","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.19 lb"}

6425-08-08-SS

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Stainless Steel","Material Grade":"316/316L"} Dimensions: {"Weight":"0.19 lb"}

6408-H16-O

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Connection Type":"Male ORB","Thread Type":"1-5/16-12 UN","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4000-16"} Body & Materials: {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.25 lb"}

6807-10-08-NWO-FG-VITON

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-10","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-08"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.40 lb"}

6410-08-05-O

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-08","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.15 lb"}

6807-08-06-NWO-FG

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-08","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-06"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.26 lb"}

6807-16-16-NWO-FG-VITON

SAE J1926 O-Ring Boss Port Adapters Scraped Connection Details: {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-16","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-16"} Body & Materials: {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"1.11 lb"}
