349 matching products
Clear
7005-05-L08-14-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.669","Weight":"0.04 lb"}
7005-12-L18-26
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M26X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.24 lb"}

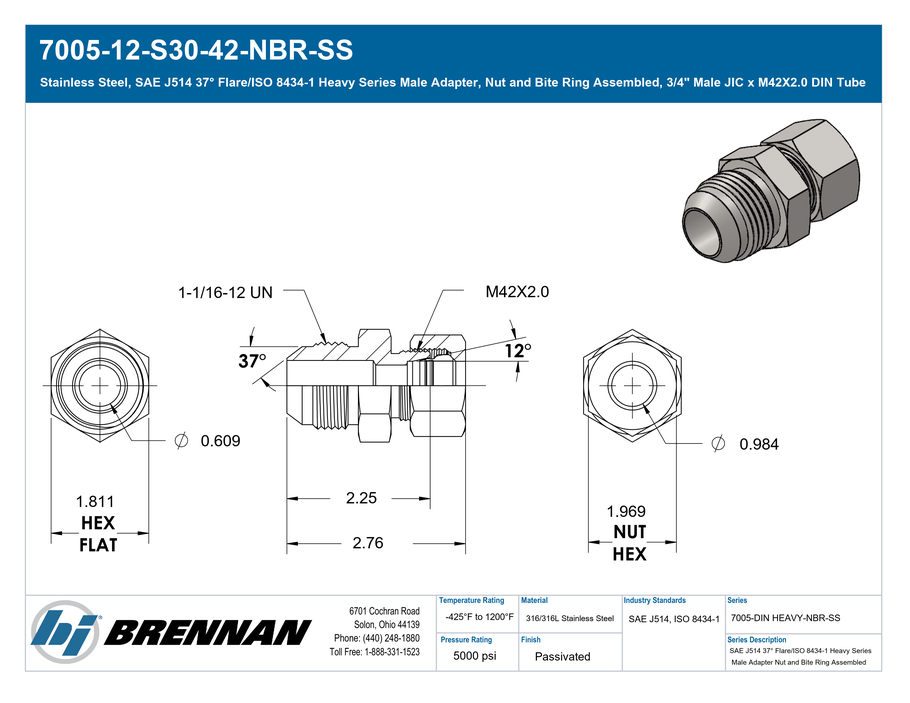

7005-12-S30-42-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M42X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.811","Weight":"1.18 lb"}
7005-10-S16-24-NBR
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M24X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.35 lb"}
7005-16-S25-36
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M36X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.614","Weight":"0.60 lb"}
7005-06-L08-14-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M14X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.748","Weight":"0.08 lb"}
7007-08-L10-16-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.16 lb"}
7005-08-S08-16
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.14 lb"}
7005-06-S10-18-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.748","Weight":"0.17 lb"}
7005-06-S12-20-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M20X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.11 lb"}
7005-08-S16-24-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M24X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.063","Weight":"0.37 lb"}
7005-12-L15-22-NBR
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.181","Weight":"0.33 lb"}
7005-16-S38-52-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M52X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"2.165","Weight":"1.50 lb"}
7005-08-S08-16-NBR
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.09 lb"}
7005-16-L28-36X1.5-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Kobelco","Side 2 Thread Type":"M36X1.5","Side 2 Standard":"ISO 8434-1, DIN 235","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.614","Weight":"0.32 lb"}
7005-16-L28-36
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M36X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"1.500","Weight":"0.37 lb"}
7005-12-S16-24-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M24X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.260","Weight":"0.32 lb"}
7007-08-L15-22-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female Metric Swivel","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Line Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.24 lb"}
7005-04-LL08-12
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M12X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} Dimensions: {"Hex/Wrench":"0.551","Weight":"0.27 lb"}
7005-20-S30-42-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M42X2.0","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.811","Weight":"0.87 lb"}
7005-12-L28-36-NBR-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"DIN Tube","Side 2 Thread Type":"M36X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"1.500","Weight":"0.62 lb"}
7005-08-L10-16-SS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} Dimensions: {"Hex/Wrench":"0.866","Weight":"0.11 lb"}
7005-12-L28-36X1.5-BS
Connection Details: {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Kobelco","Side 2 Thread Type":"M36X1.5","Side 2 Standard":"ISO 8434-1, DIN 235","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Hex/Wrench":"1.496","Weight":"0.32 lb"}
