FS6403-04-04

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-04","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.06 lb"}

FS6400-12-08-O-SS-VITON

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-12","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-08"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.01 lb"}

FS6400-12-16-O-VITON

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-12","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-16"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.58 lb"}

FS6400-06-03-O

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/8-24 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-03"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.10 lb"}

FS6400-24-24-O-VITON

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-24","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-24"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"1.15 lb"}

FS2764-24-24-O

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-24","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-24"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.89 lb"}

FS6400-10-16-O

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"1-14 UNS","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-10","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-16"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.48 lb"}

FS2403-06-06-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"11/16-16 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-06"} Body & Materials: {"Shape":"Straight","Shape Type":"Union","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.10 lb"}

FS2700-12-12-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-12","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-3/16-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-12"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Stainless Steel","Material Grade":"316/316L","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.63 lb"}

FS2700-16-16

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-7/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-16","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-7/16-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-16"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.88 lb"}

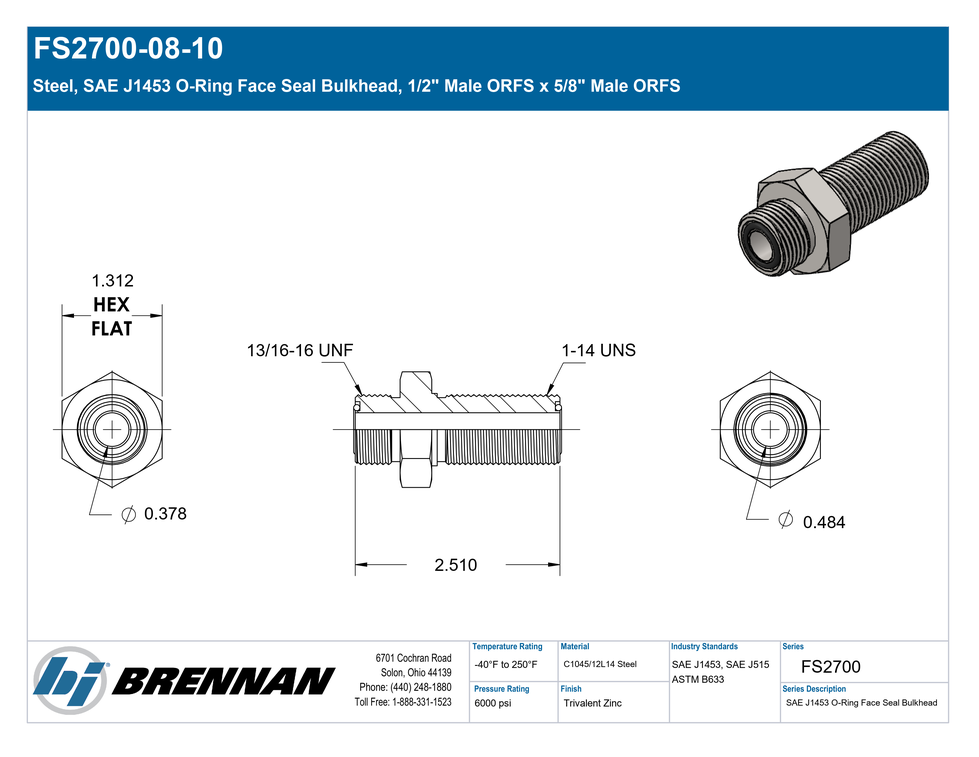

FS2700-08-10

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"13/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-08","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"1-14 UNS","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-10"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.44 lb"}

FS2404-08-08

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"13/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-08","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.19 lb"}

FS2700-24-24-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-24","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"2-12 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-24"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Stainless Steel","Material Grade":"316/316L","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.60 lb"}

FS2403-32-32-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-32","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"2\"","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-32"} Body & Materials: {"Shape":"Straight","Shape Type":"Union","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"1.44 lb"}

FS2700-06-06-VITON

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-06","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"11/16-16 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4001-06"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.21 lb"}

FS2700-04-04

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-04","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"1/4\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-04"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.14 lb"}

FS6400-06-16-O

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-16"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.47 lb"}

FS6400-06-08-O-VITON

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-06","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-08"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} Dimensions: {"Weight":"0.15 lb"}

FS2405-12-12-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-12","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.48 lb"}

FS2404-12-12-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-12","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} Body & Materials: {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.38 lb"}

FS6400-L-04-04-O

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-04","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"7/16-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-04"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.12 lb"}

FS2700-16-12

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-7/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-16","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-3/16-12 UN","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-12"} Body & Materials: {"Shape":"Straight","Shape Type":"Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.76 lb"}

FS6400-L-08-08-O-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"13/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-08","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-08"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.31 lb"}

FS6400-06-08-O-SS

Straights Scraped Connection Details: {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-08"} Body & Materials: {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} Dimensions: {"Weight":"0.16 lb"}
