Attributes
| Part Number | C0318-24-SS |
|---|---|
| Is Series Page | 0 |
Description

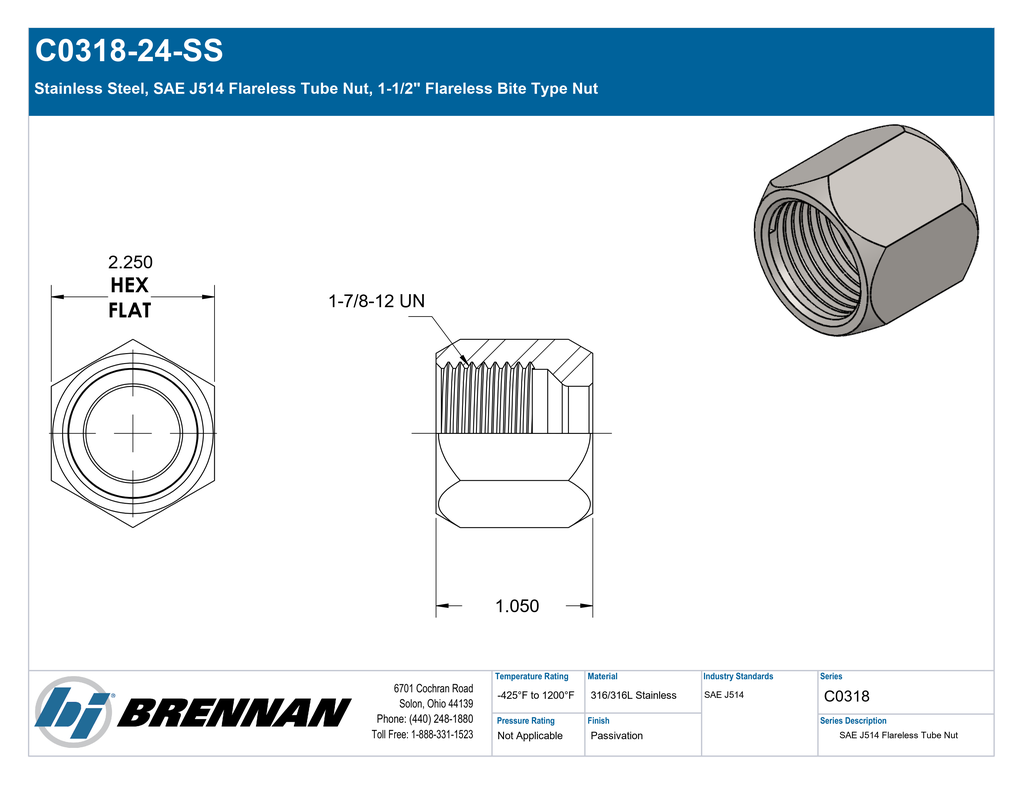

Stainless Steel, SAE J514 Flareless Tube Nut, 1-1/2" Flareless Bite Type Nut
Specifications
| Connection Details | {"Connection Type":"Flareless Bite Type Nut","Tube OD":"1-1/2\"","Thread Type":"1-7/8-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.59 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-210294-24","Parker TFD Part Number":"24 BU-SS","SAE J514 Part Number":"SAE J514 24 080110S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Tube Nut |
| Technical Series Configuration | SAE J514 Flareless Tube Nut |
| Side 1 Connection Type | Flareless Bite Type Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
