Attributes
| Part Number | 6803-08-08-08-NWO-FG-VITON |
|---|---|
| Is Series Page | 0 |
Description

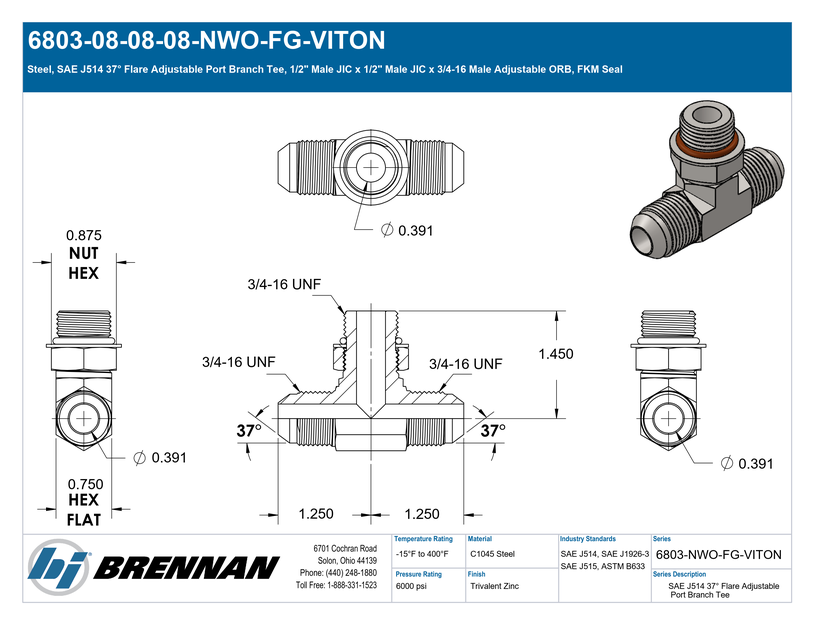

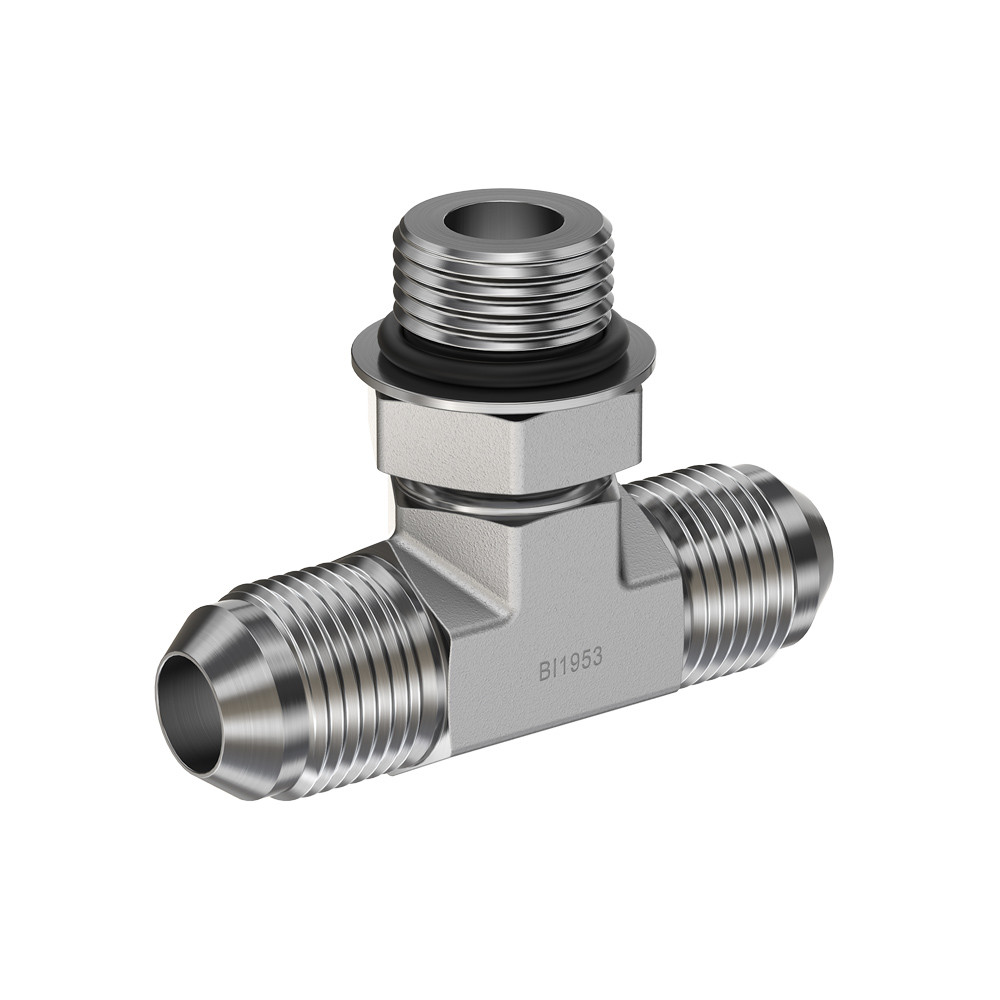

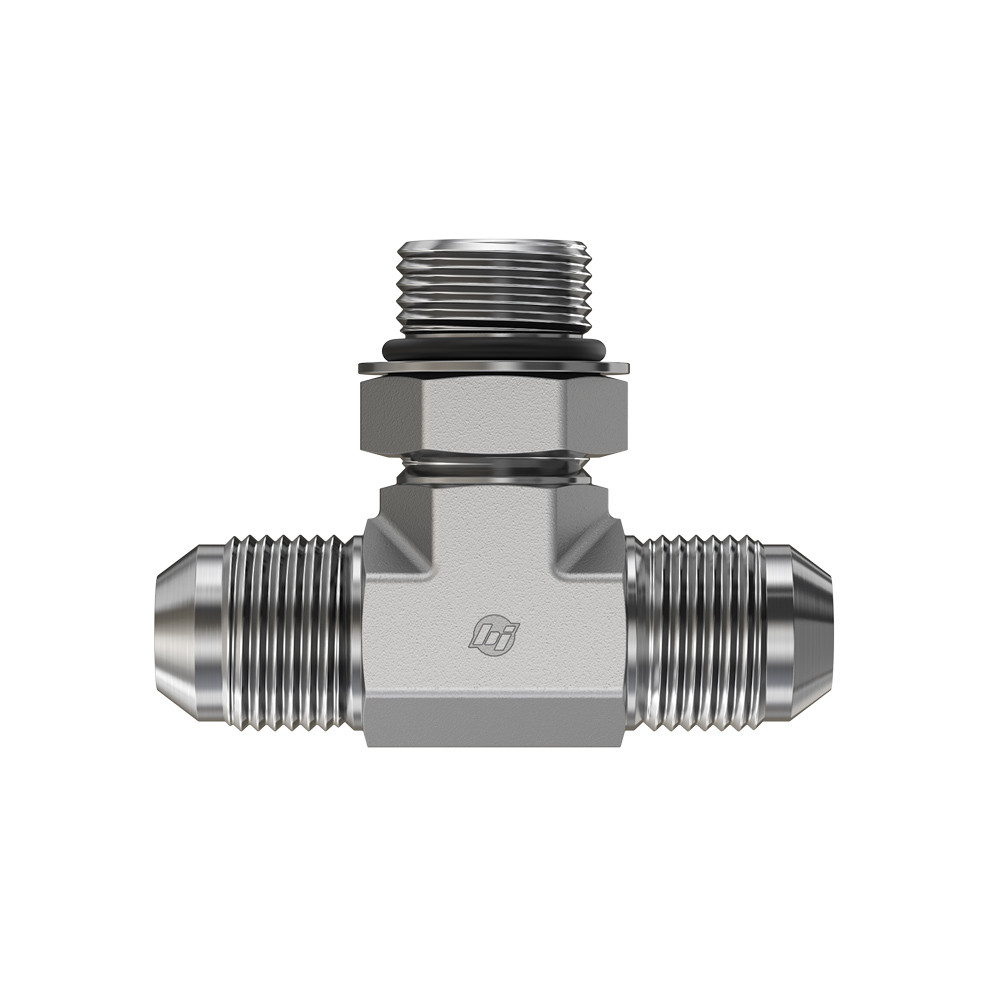

Steel, SAE J514 37° Flare Adjustable Port Branch Tee, 1/2" Male JIC x 1/2" Male JIC x 3/4-16 Male Adjustable ORB, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male Adjustable ORB","Side 3 Thread Type":"3/4-16 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4001-08"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Adjustable Branch Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.31 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-203003-8-8","Parker TFD Part Number":"8 S5OX-S FKM","SAE J514 Part Number":"SAE J514 8-8-8 070429CF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male Adjustable ORB |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC x SAE J1926-3 Male Adjustable O-Ring Boss Branch Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
