Attributes
| Part Number | FS7210-06-06-14-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

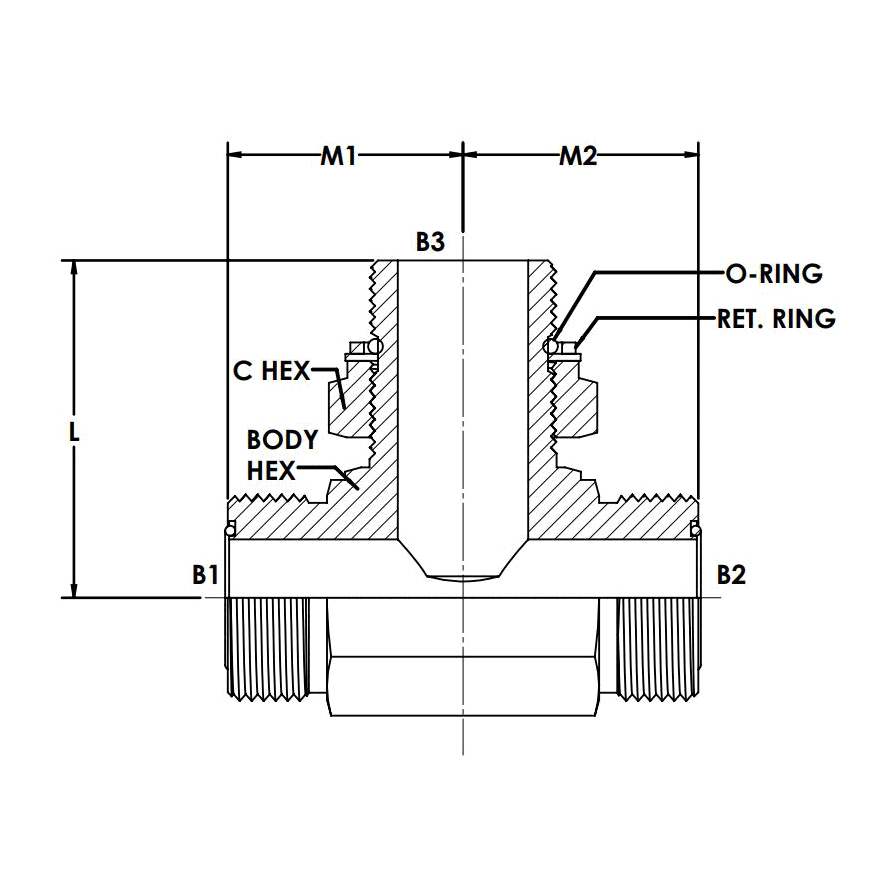

Steel, SAE J1453 O-Ring Face Seal Male Metric Adjustable (Type H) Port Branch Tee, 3/8" Male ORFS x 3/8" Male ORFS x M14X1.5 Male Metric Adjustable ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Male ORFS","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"11/16-16 UNF","Side 2 Standard":"SAE J1453 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 2 Replacement Seal":"FS4000-06","Side 3 Connection Type":"Male Metric Adjustable ORR","Side 3 Thread Type":"M14X1.5","Side 3 Standard":"ISO 9974","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4003-14","Side 3 Replacement Washer":"8200-14"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Adjustable Branch Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.669","Weight":"0.25 lb"} |
| Performance Specifications | {"Working Pressure":"3600 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"14400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male ORFS x Male Metric Adjustable ORR |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x Male ORFS Tube x ISO 9974 Male Metric Adjustable ORR Port Branch Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male ORFS |
| Shape | Tee |
| Product Type | Fittings |
