Attributes
| Part Number | 0319-20-SS |
|---|---|
| Is Series Page | 0 |
Description

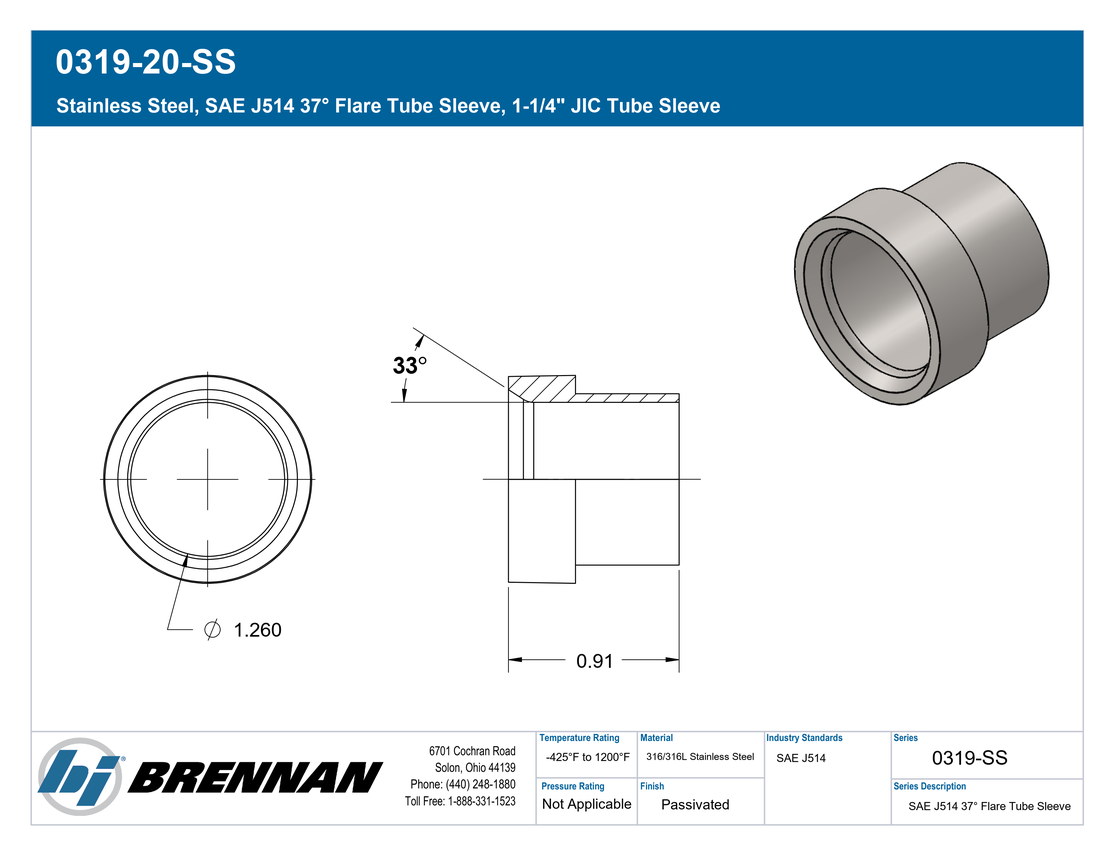

Stainless Steel, SAE J514 37° Flare Tube Sleeve, 1-1/4" JIC Tube Sleeve
Specifications
| Connection Details | {"Connection Type":"JIC Tube Sleeve","Tube OD":"1-1/4\"","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Tube Sleeve","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-900605-20","Parker Hose Part Number":"110-20-SS","Parker TFD Part Number":"20 TX-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | JIC Tube Sleeve |
| Technical Series Configuration | SAE J514 Tube Sleeve |
| Side 1 Connection Type | JIC Tube Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
