Attributes
| Part Number | 1704-32-40 |
|---|---|
| Is Series Page | 0 |
Description

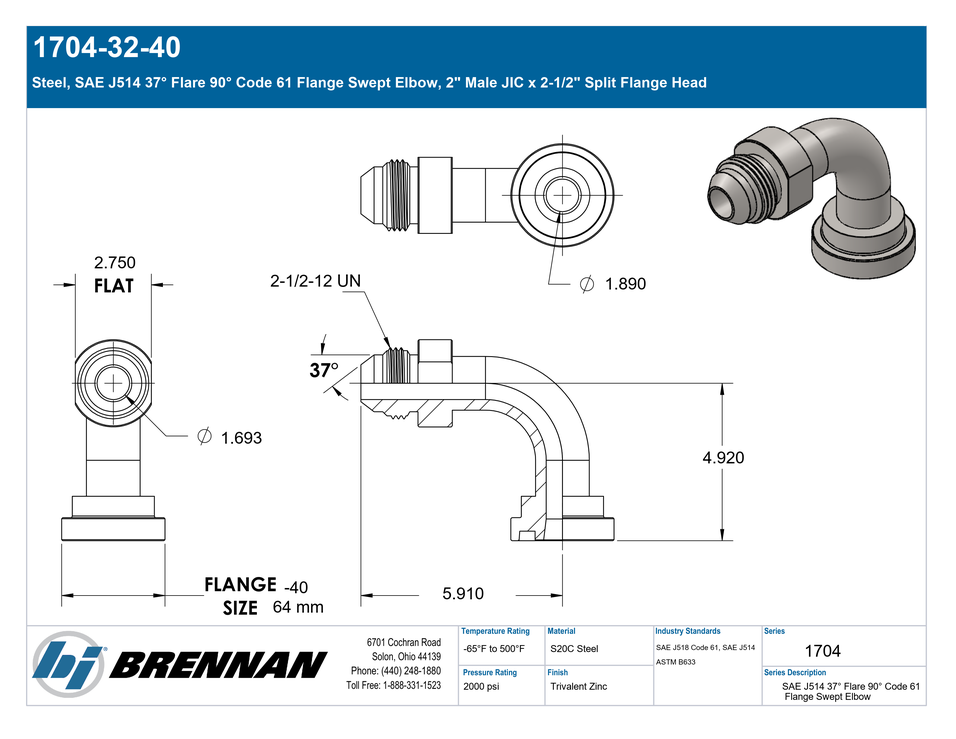

Steel, SAE J514 37° Flare 90° Code 61 Flange Swept Elbow, 2" Male JIC x 2-1/2" Split Flange Head
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Split Flange Head","Side 2 Flange Size":"2-1/2\"","Side 2 Standard":"SAE J518","Side 2 Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Swept Elbow","Shape Type":"Male Swept Elbow","Primary Material":"Steel","Material Grade":"S20C","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"4.92 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"500024-40-32S","Parker Hose Part Number":"4NH3-40-32"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Code 61 Flange |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J518 Code 61 Split Flange Head Swept 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Split Flange Head |
| Shape | 90° Swept Elbow |
| Product Type | Fittings |
