Attributes
| Part Number | 0302-12-SS |
|---|---|
| Is Series Page | 0 |
Description

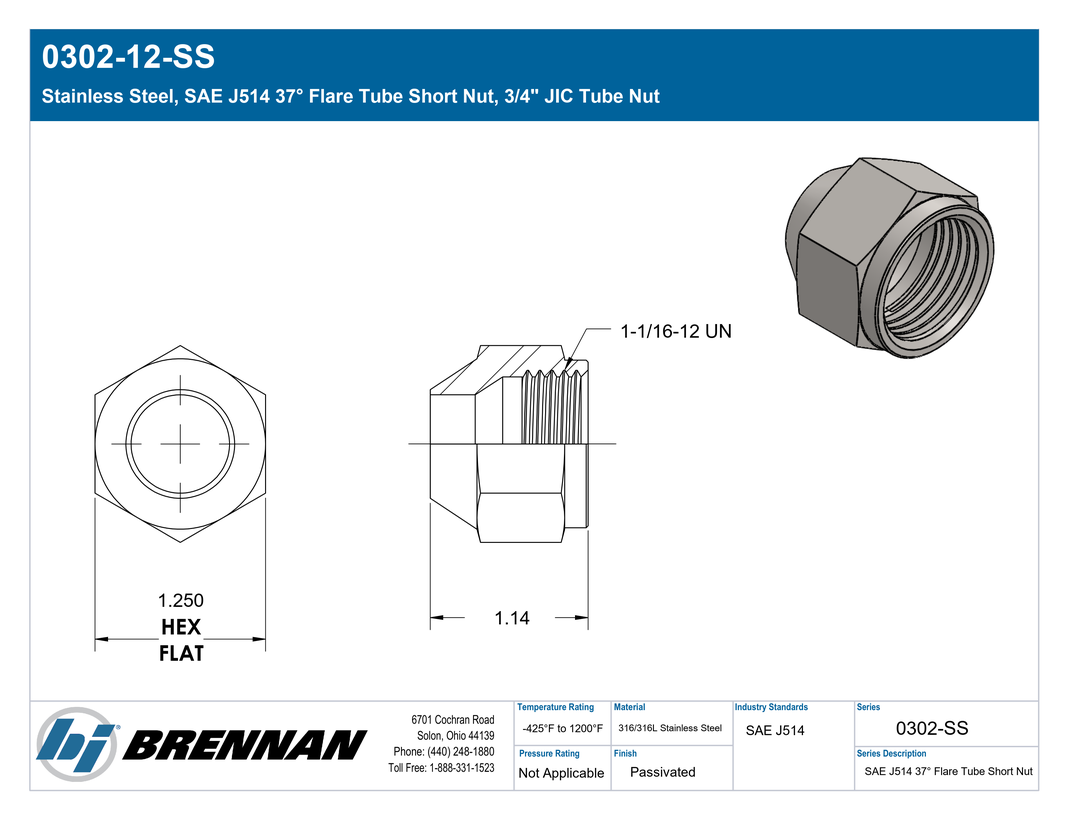

Stainless Steel, SAE J514 37° Flare Tube Short Nut, 3/4" JIC Tube Nut
Specifications
| Connection Details | {"Connection Type":"JIC Tube Nut","Tube OD":"3/4\"","Thread Type":"1-1/16-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Short Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.17 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | JIC Short Nut |
| Technical Series Configuration | SAE J514 Female JIC Tube Short Nut |
| Side 1 Connection Type | JIC Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
