Attributes
| Part Number | 2408-40 |
|---|---|
| Is Series Page | 0 |
Description

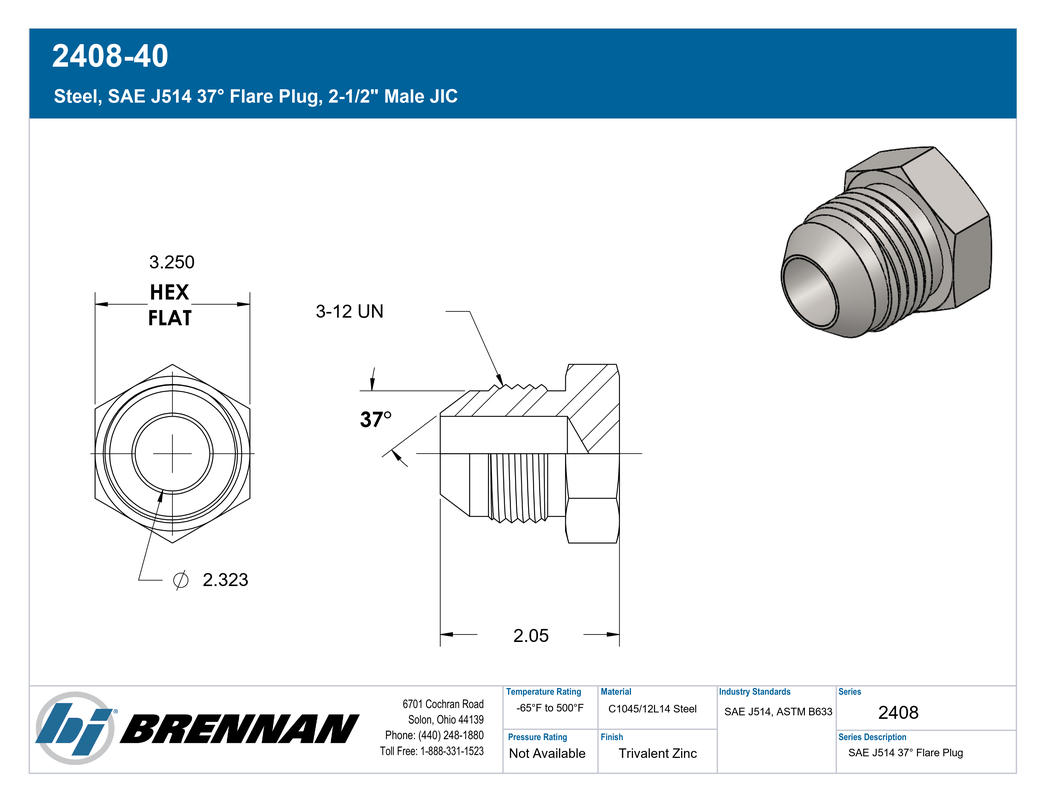

Steel, SAE J514 37° Flare Plug, 2-1/2" Male JIC
Specifications
| Connection Details | {"Connection Type":"Male JIC","Tube OD":"2-1/2\"","Thread Type":"3-12 UN","Standard":"SAE J514 - Class 2A Thread","Connection Standard":"SAE J514 - Class 2A Thread","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"2.85 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"900599-40S","Parker TFD Part Number":"40 PNTX-S","SAE J514 Part Number":"SAE J514 40 070109C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC Plug |
| Technical Series Configuration | SAE J514 Male JIC Tube Plug |
| Side 1 Connection Type | Male JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
