Attributes
| Part Number | D0304-C-L15-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, DIN 2353 Blanking Plug, Light 15mm Tube OD
Specifications
| Connection Details | {"Connection Type":"DIN Tube Cap","Tube OD":"15mm","DIN Pressure Series":"Light","Thread Type":"M22X1.5","Standard":"DIN 2353, ISO 8434-1","Connection Standard":"DIN 2353, ISO 8434-1","Role":"Line Connection","Connection Role":"Line Connection","Replacement Seal":"M4000-15-VITON"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.18 lb"} |
| Performance Specifications | {"Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal"} |
| Cross References | {"Parker TFD Part Number":"VKAM15L71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube Blanking Cap Assembly |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Blanking Cap Assembly |
| Side 1 Connection Type | DIN Tube Cap |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

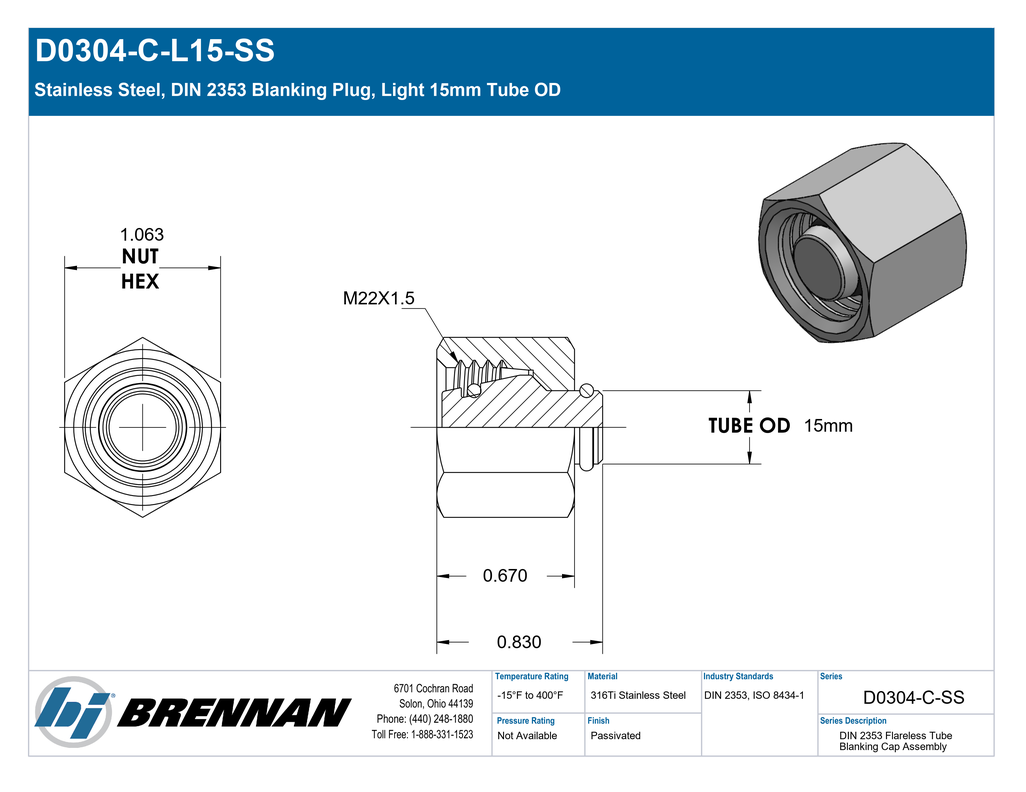

Specification Sheet
Open PDF
