Attributes
| Part Number | D2700-LN-S20-S20-SS |
|---|---|
| Is Series Page | 0 |
Description

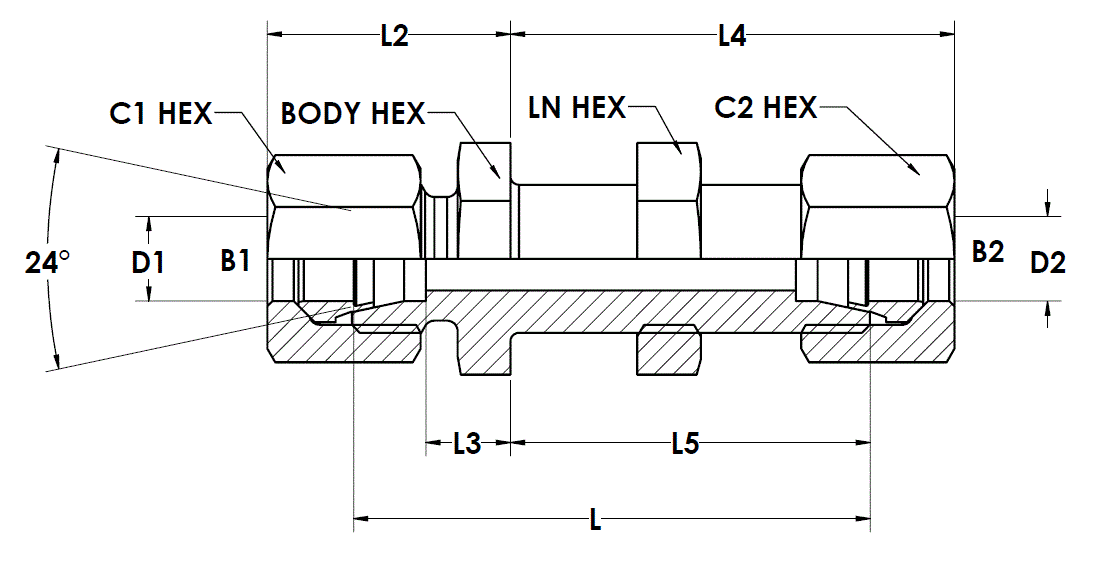

Stainless Steel, DIN 2353 Bulkhead Union, Heavy 20mm Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"20mm","Side 1 Thread Type":"M30X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"DIN Tube","Side 2 Tube OD":"20mm","Side 2 Thread Type":"M30X2.0","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection","Side 2 DIN Pressure Series":"Heavy"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Bulkhead Union","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"41mm","Weight":"1.38 lb"} |
| Performance Specifications | {"Working Pressure":"6092 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24368 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"SV20S71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x DIN Tube Bulkhead, With Lock Nut |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Flareless Bulkhead Tube Union With Lock Nut |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | DIN Tube |
| Shape | Straight |
| Product Type | Fittings |
