Attributes
| Part Number | 2404-04-06 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Male Connector, 1/4" Male JIC x 3/8" Male NPTF 30°
Specifications
| Series Configuration | Male JIC x Male Pipe |
|---|---|
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

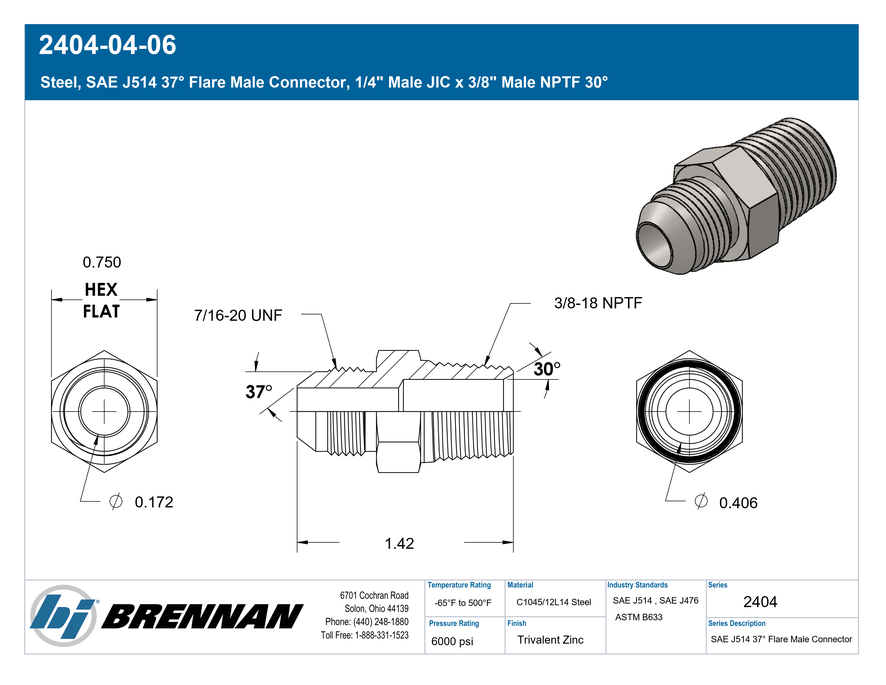

Specification Sheet
Open PDF
