Attributes
| Part Number | 5605-04-04-02-FG |
|---|---|
| Is Series Page | 0 |
Description

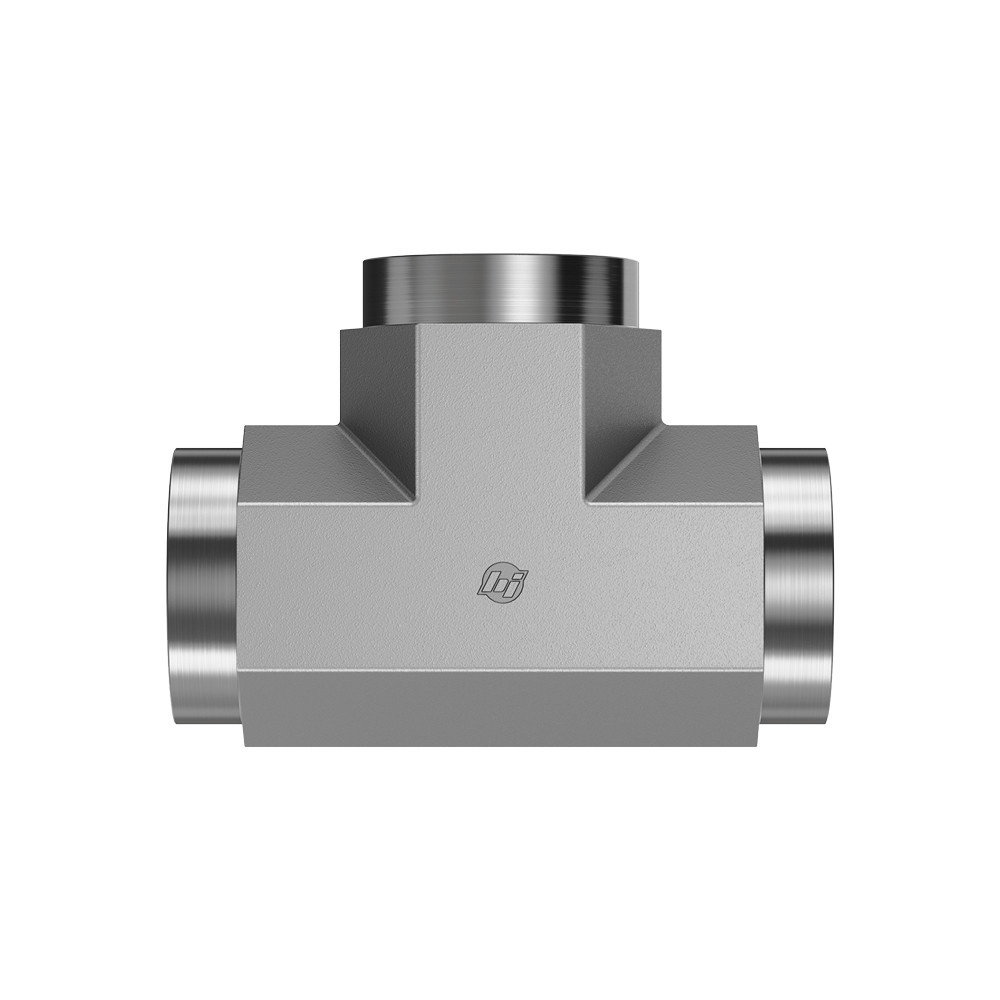

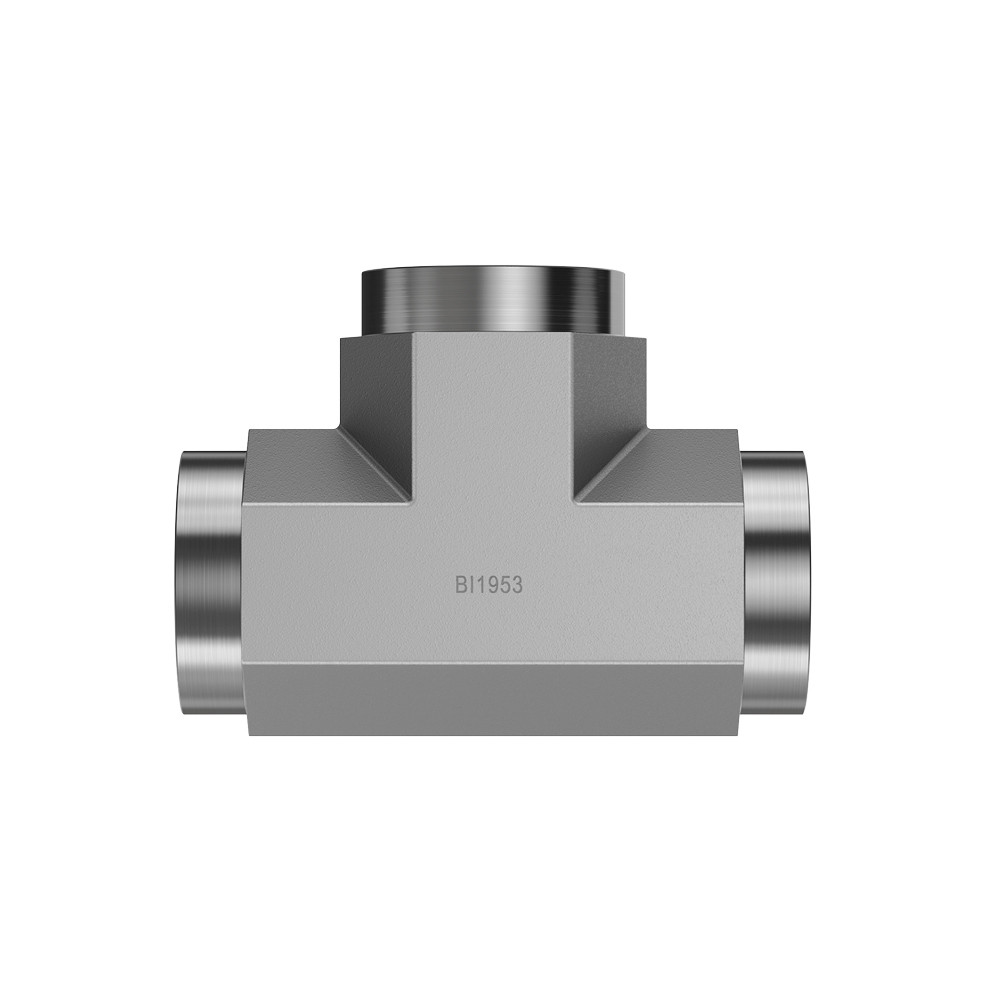

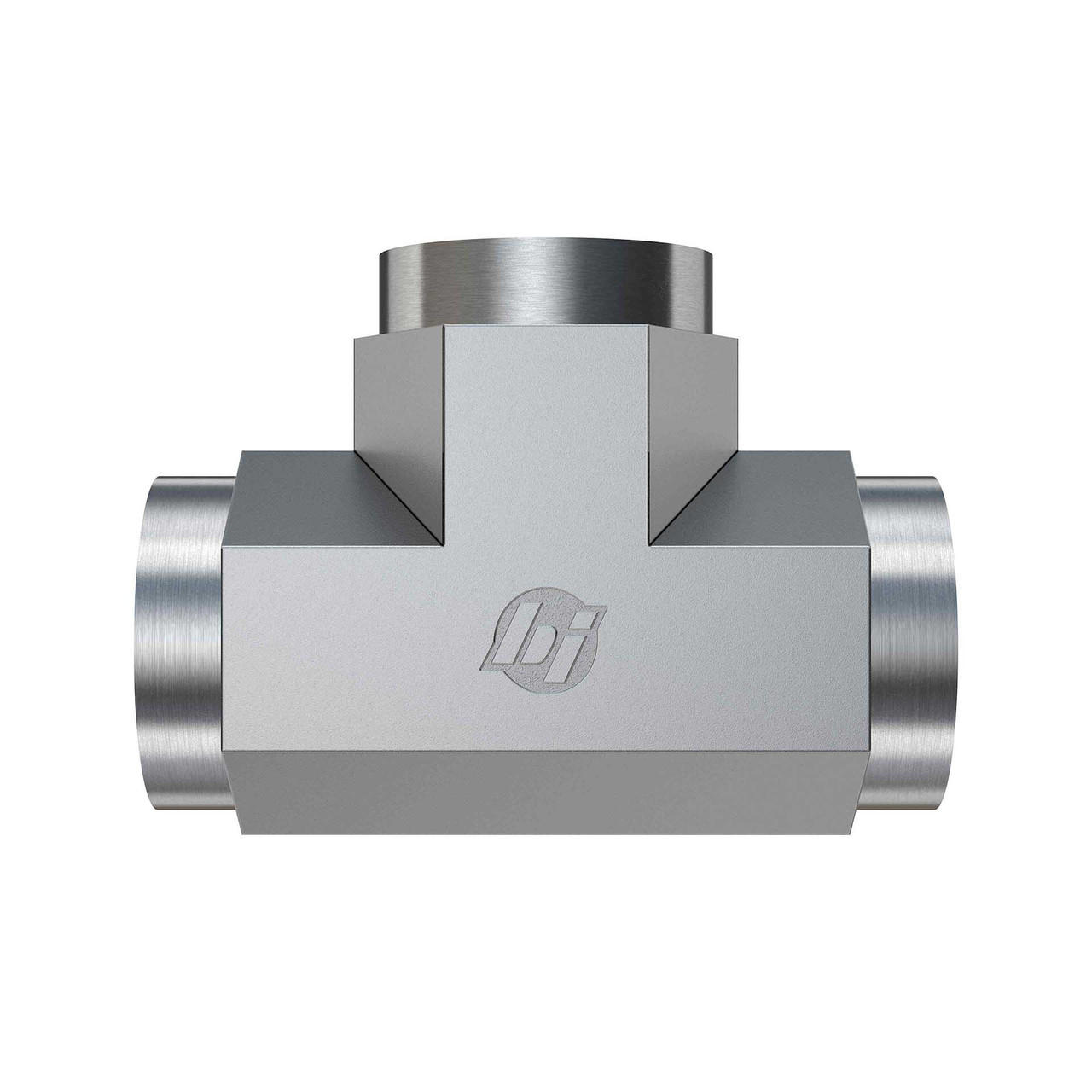

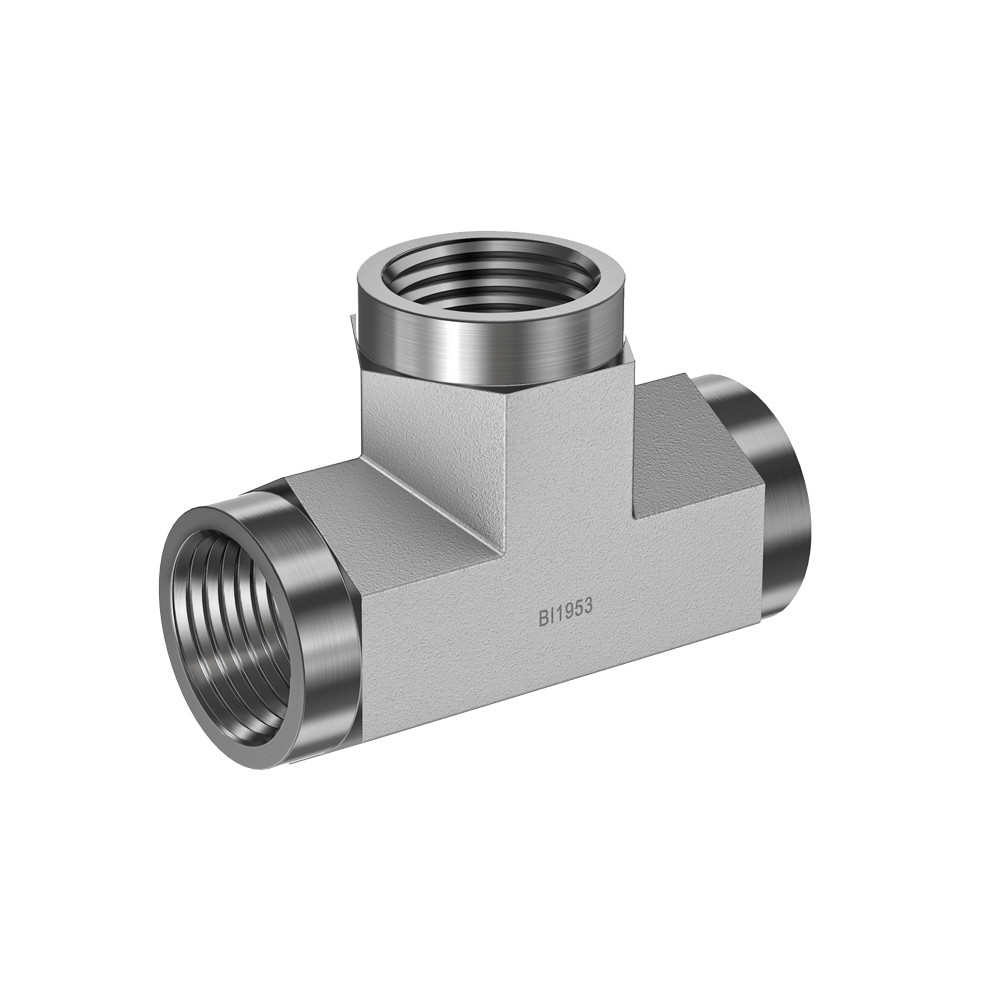

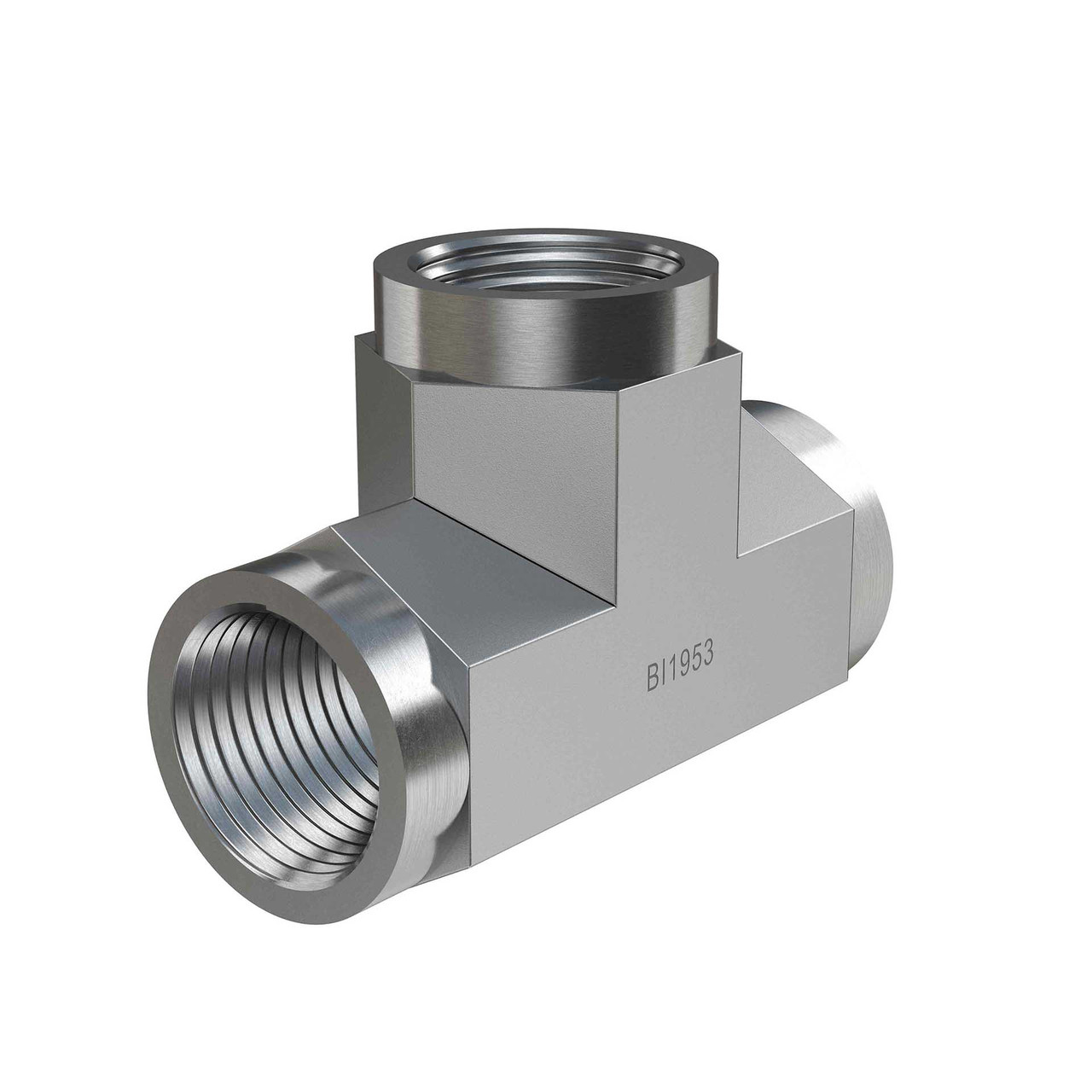

Steel, SAE J514 Pipe Female Tee, 1/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/8\"","Side 3 Thread Type":"1/8-27 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Female Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.21 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4 X 1/4 X 1/8 MMO-S","SAE J514 Part Number":"SAE J514 4-4-2 140438C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPTF x Female NPTF Tee |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | Tee |
| Product Type | Fittings |
