Attributes
| Part Number | 2115-06-05-B |
|---|---|
| Is Series Page | 0 |
Description

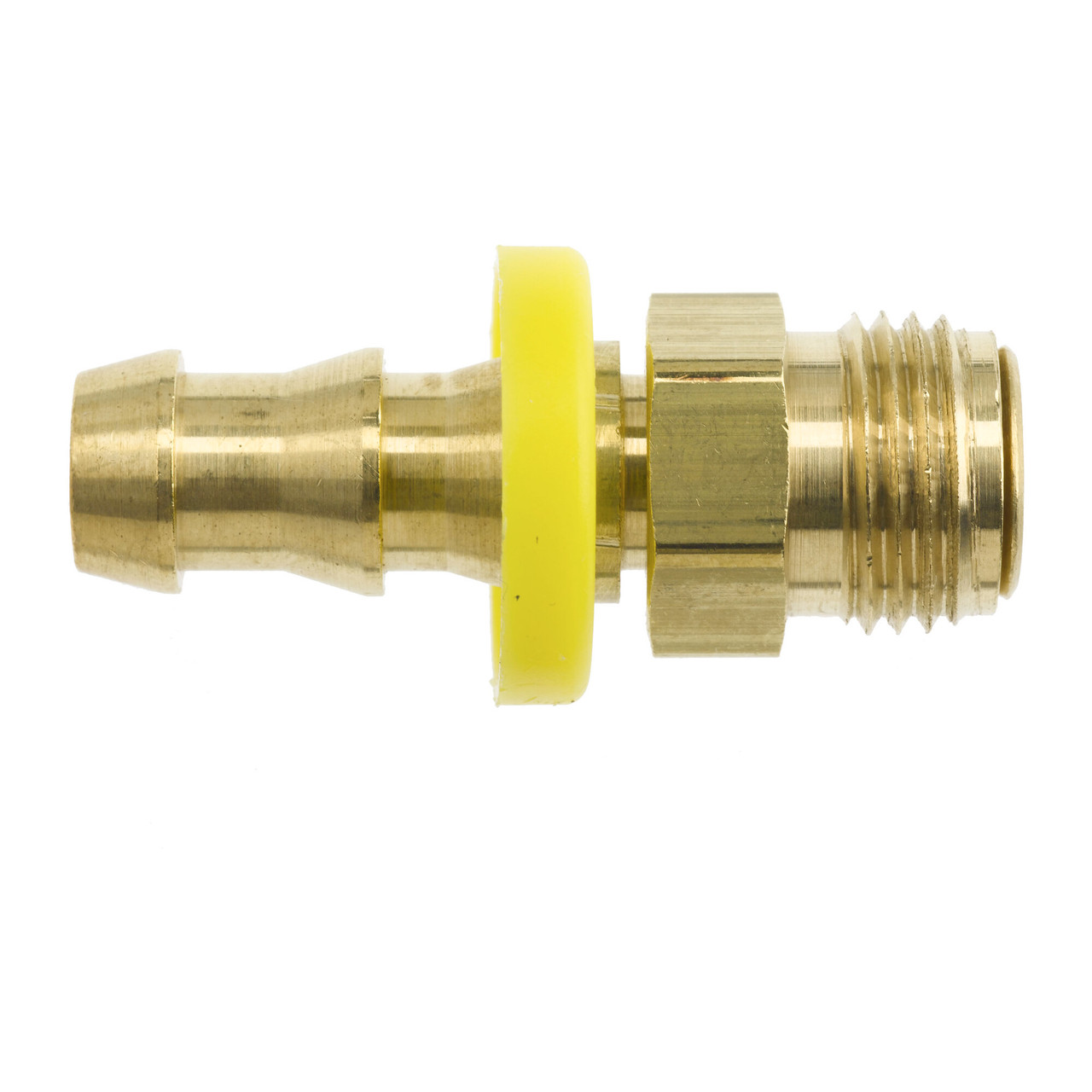

06PL-05MIFS Straight Brass
Specifications
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Swivel Connector","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish","Seal Code":"LDPE"} |
|---|---|
| Dimensions | {"Weight":"0.06 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-50°F to 185°F","Temperature Notes":"Temperature limited by LDPE Washer"} |
| Cross References | {"Aeroquip Part Number":"4740-5-6B","Parker Hose Part Number":"32882-5-6B","Parker TFD Part Number":"32882-5-6B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Push-Lok Hose Barb x Male Inverted Flare Swivel |
| Technical Series Configuration | Push-Lok Hose Barb x SAE J512 Male Inverted Flare Swivel Connector |
| Shape | Straight |
| Product Type | Fittings |
