Attributes
| Part Number | 0318-04-SS |
|---|---|
| Is Series Page | 0 |
Description

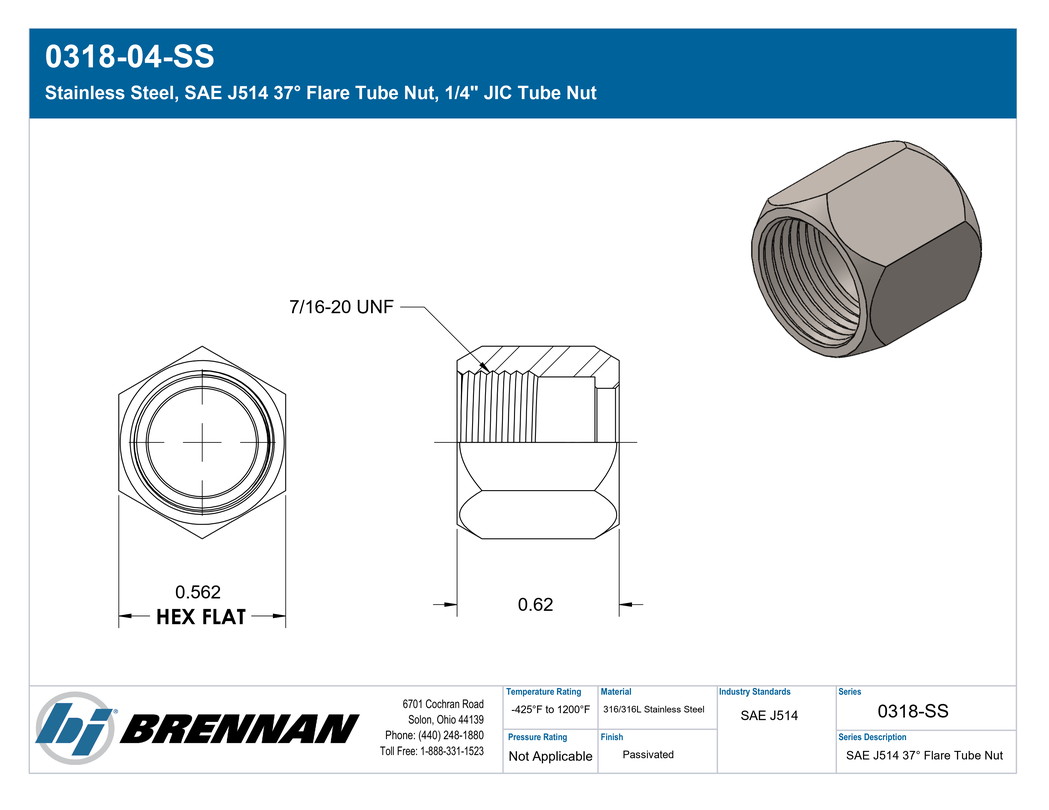

Stainless Steel, SAE J514 37° Flare Tube Nut, 1/4" JIC Tube Nut
Specifications
| Connection Details | {"Connection Type":"JIC Tube Nut","Tube OD":"1/4\"","Thread Type":"7/16-20 UNF","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.03 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-1290-4","Parker Hose Part Number":"111-4-SS","Parker TFD Part Number":"4 BTX-SS","SAE J514 Part Number":"SAE J514 4 070110S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | JIC Tube Nut |
| Technical Series Configuration | SAE J514 Female UN/UNF Tube Nut |
| Side 1 Connection Type | JIC Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
