Attributes
| Part Number | 2408-06-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Plug, 3/8" Male JIC
Specifications
| Connection Details | {"Connection Type":"Male JIC","Tube OD":"3/8\"","Thread Type":"9/16-18 UNF","Standard":"SAE J514 - Class 2A Thread","Connection Standard":"SAE J514 - Class 2A Thread","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"7200 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"28800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-900599-6","Parker Hose Part Number":"03CP-6-SS","Parker TFD Part Number":"6 PNTX-SS","SAE J514 Part Number":"SAE J514 6 070109S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC Plug |
| Technical Series Configuration | SAE J514 Male JIC Tube Plug |
| Side 1 Connection Type | Male JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

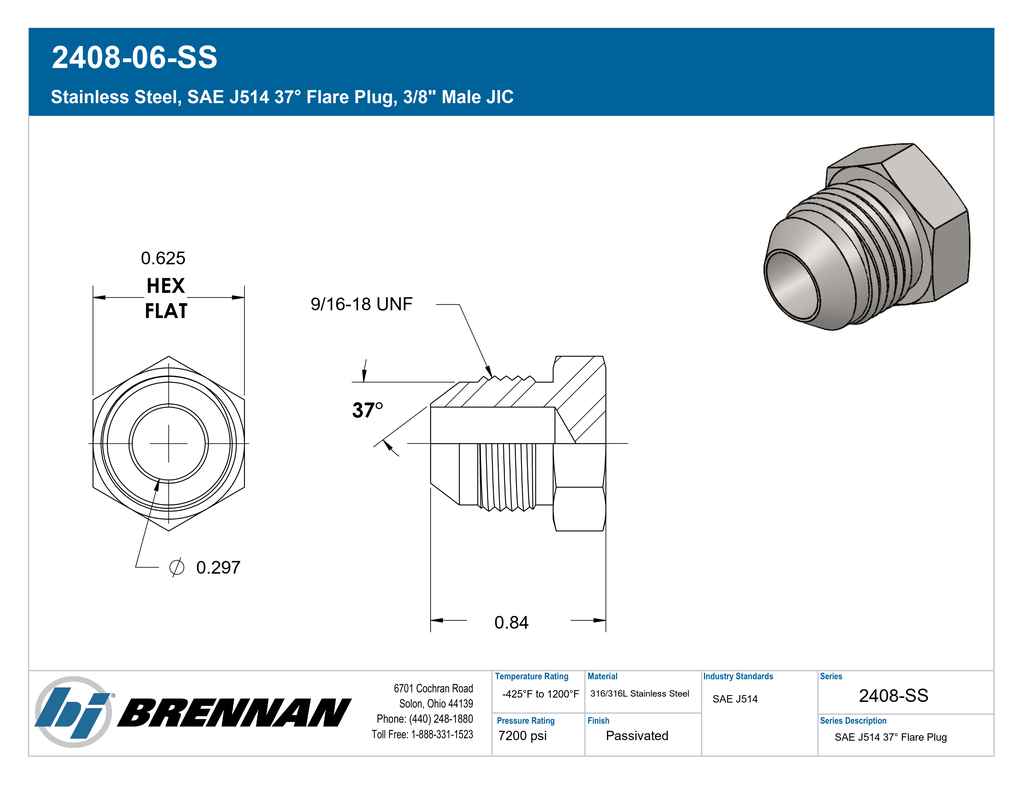

Specification Sheet
