Attributes
| Part Number | 6850-06-06-06-06-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

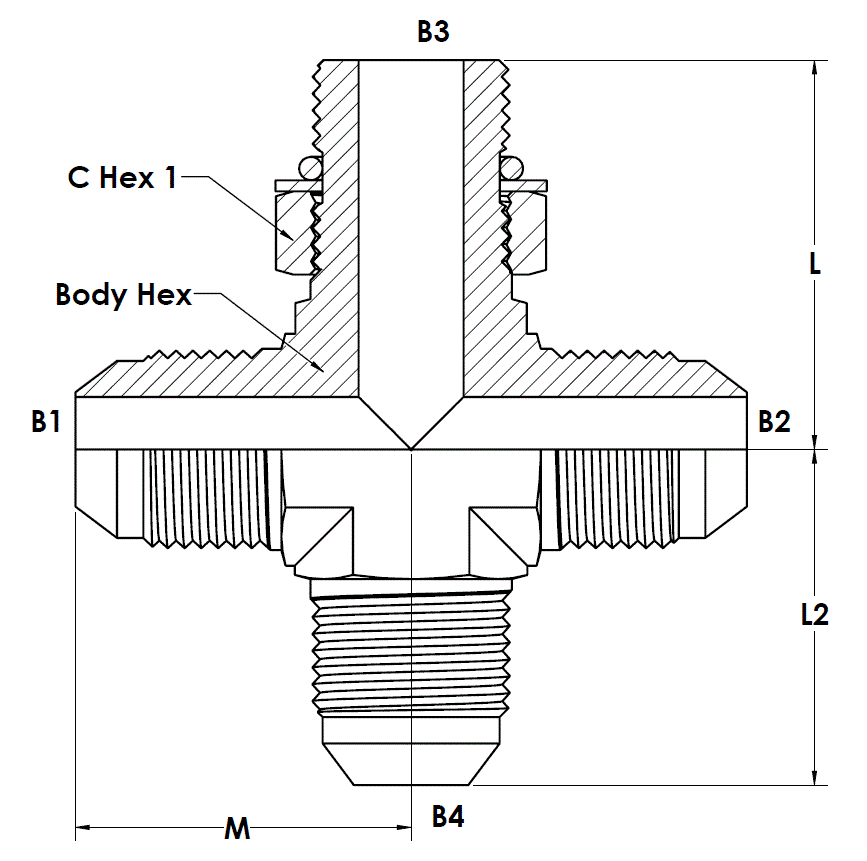

Steel, SAE J514 37° Flare Adjustable Port Cross, 3/8" Male JIC x 3/8" Male JIC x 9/16-18 Male Adjustable O-Ring Boss x 3/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male Adjustable ORB","Side 3 Thread Type":"9/16-18 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4000-06","Side 4 Connection Type":"Male JIC","Side 4 Tube OD":"3/8\"","Side 4 Thread Type":"9/16-18 UNF","Side 4 Standard":"SAE J514 - Class 2A Thread","Side 4 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cross","Shape Type":"Adjustable Cross","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.19 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male Adjustable ORB x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube x SAE J1926-3 Male Adjustable O-Ring Boss x Male JIC Tube Cross |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Cross |
| Product Type | Fittings |
