Attributes
| Part Number | 1703-08-08 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare 45° Code 61 Flange Swept Elbow, 1/2" Male JIC x 1/2" Split Flange Head
Specifications
| Series Configuration | Male JIC x Code 61 Flange |
|---|---|
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J518 Code 61 Split Flange Head Swept 45° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Split Flange Head |
| Shape | 45° Swept Elbow |
| Product Type | Fittings |
PDF Documents

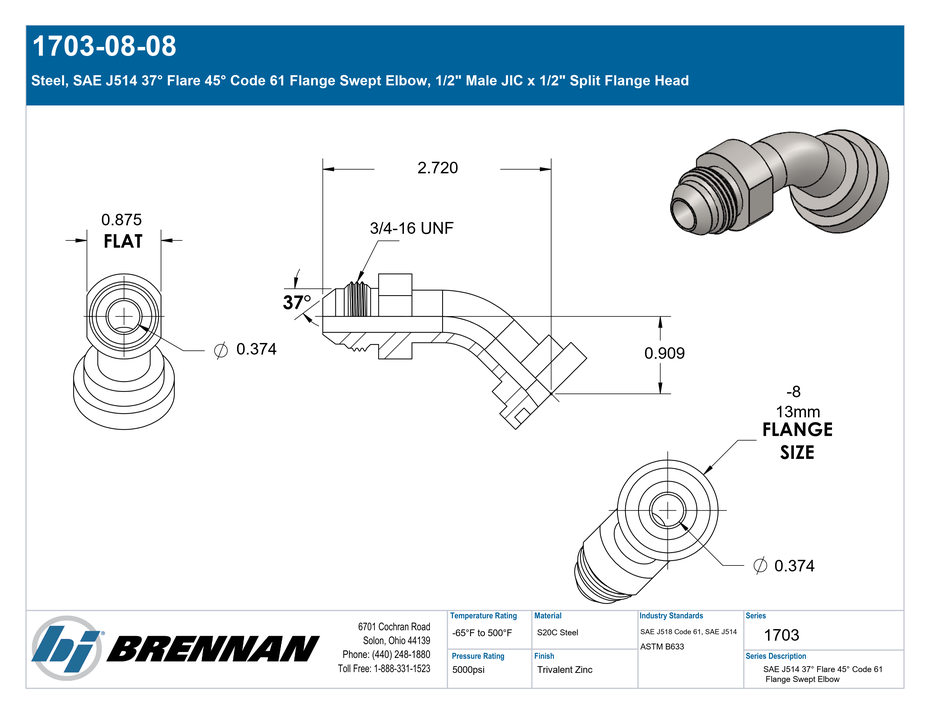

Specification Sheet
Open PDF
