Attributes
| Part Number | 8055-24-20 |
|---|---|
| Is Series Page | 0 |
Description

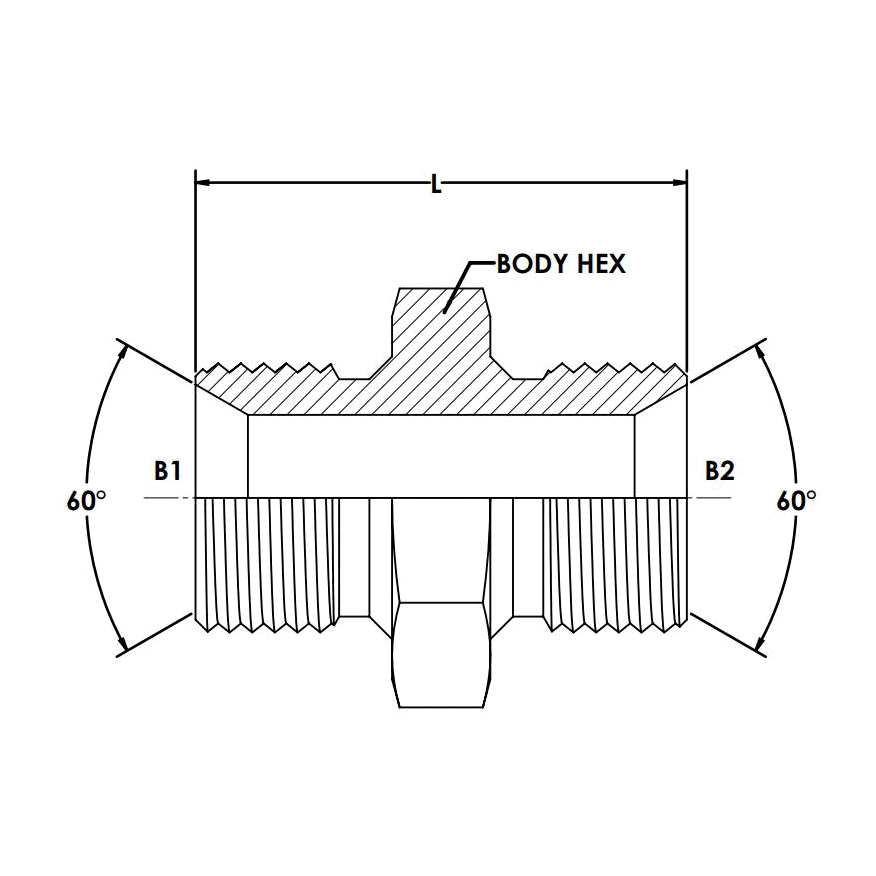

Steel, ISO 9974 Metric Port/Line Nipple, M24X1.5 Male Metric 60° x M20X1.5 Male Metric 60°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Metric 60° Line Only","Side 1 Thread Type":"M24X1.5","Side 1 Standard":"ISO 9974","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male Metric 60° Line Only","Side 2 Thread Type":"M20X1.5","Side 2 Standard":"ISO 9974","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.181","Weight":"0.21 lb"} |
| Performance Specifications | {"Working Pressure":"3500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"14000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Metric x Male Metric |
| Technical Series Configuration | ISO 9974 Male Metric Port x ISO 9974 Male Metric Port Nipple Adapter |
| Side 1 Connection Type | Male Metric 60° Line Only |
| Side 2 Connection Type | Male Metric 60° Line Only |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
No PDF documents.
