Attributes
| Part Number | 8555-P-10 |
|---|---|
| Is Series Page | 0 |
Description

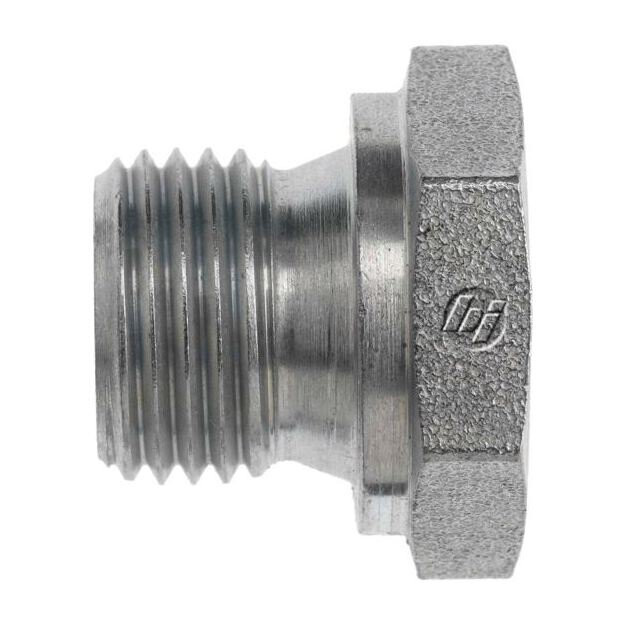

Steel, ISO 9974 (Type E) Metric ED Seal Hex Head Port Plug, M10X1.0 Male Metric
Specifications
| Connection Details | {"Connection Type":"Male Metric","Thread Type":"M10X1.0","Standard":"ISO 9974","Connection Standard":"ISO 9974","Role":"Port Connection","Connection Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |

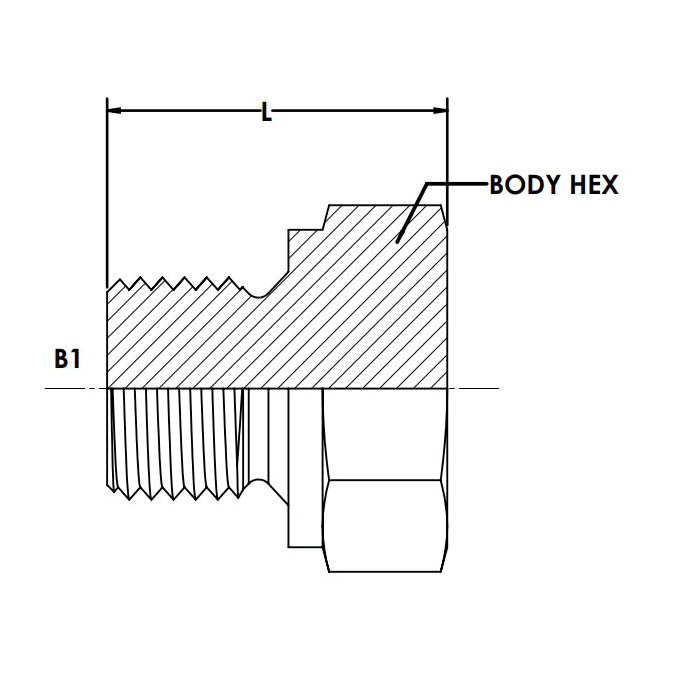

| Dimensions | {"Hex/Wrench":"0.551","Weight":"0.03 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Metric Plug |
| Technical Series Configuration | ISO 9974 Male Metric Hex Head Port Plug |
| Side 1 Connection Type | Male Metric |
| Shape | Cap/Plug |
| Product Type | Fittings |
