Description
Brass, SAE J514 37° Flare 90° Union Elbow, 5/16" Male JIC x 5/16" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"5/16\"","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Union Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"SAE J514 Part Number":"SAE J514 5-5 070201B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male JIC |

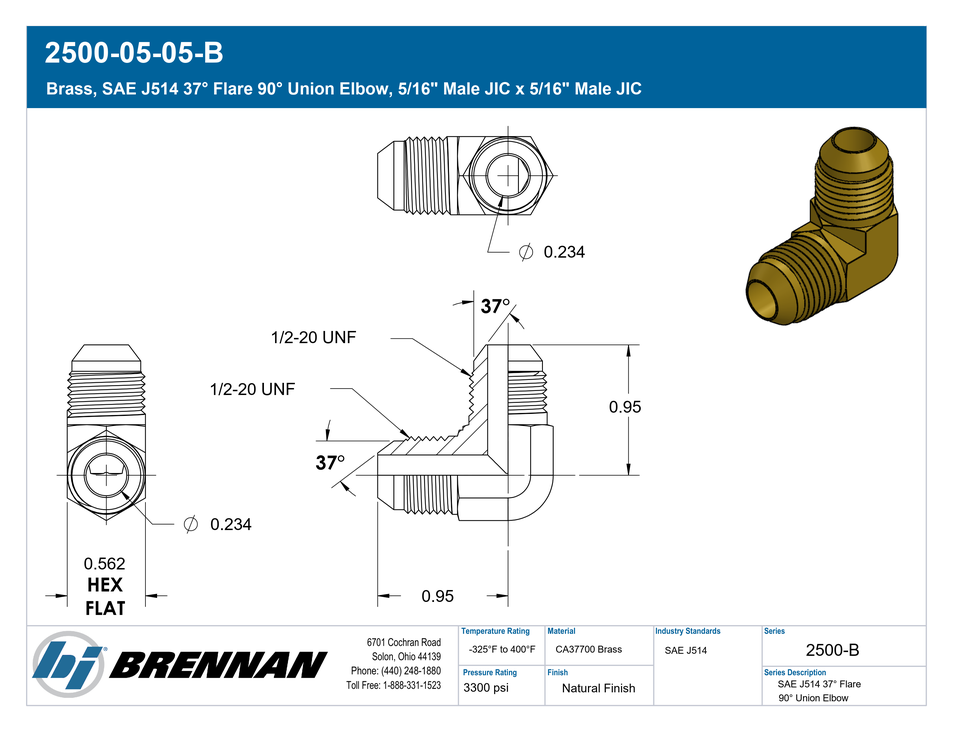

| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube 90° Union Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | 90° Elbow |
| Product Type | Fittings |
