Attributes
| Part Number | 1824-16-SS |
|---|---|
| Is Series Page | 0 |
Description

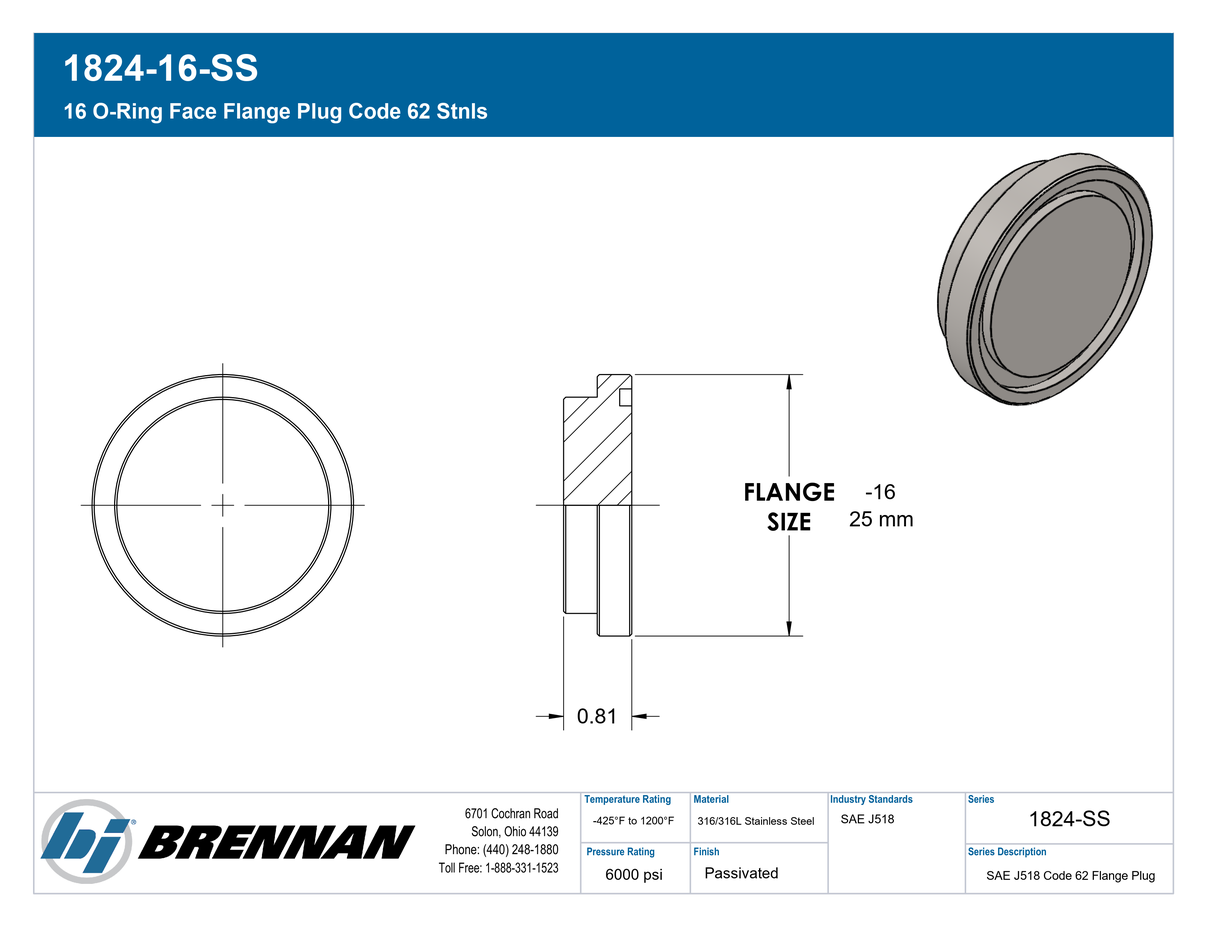

Stainless Steel, SAE J518 Code 62 Split Flange Plug, 1" Flange Plug
Specifications
| Connection Details | {"Connection Type":"Flange Plug","Flange Size":"1\"","Standard":"SAE J518","Connection Standard":"SAE J518","Role":"Flange Connection","Connection Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Flange Head Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.50 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"16PQ2SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Code 62 Flange Plug |
| Technical Series Configuration | SAE J518 Code 62 Split Flange Head Plug |
| Side 1 Connection Type | Flange Plug |
| Shape | Cap/Plug |
| Product Type | Fittings |
